GEPRC TAKER S60 BLS 60A ESC

Regular price $13.99
Sale price $13.99 Regular price
Unit price
  • Free Shipping & Returns: On all orders over $75

GEPRC TAKER S60 BLS 60A ESC

GEPRC TAKER S60 BLS 60A ESC

Product description

Feature

  1. Self-contained MOS heat sink for efficient cooling under high current loads, ensuring more stable performance.
  2. Wide battery voltage compatibility, with high-quality MOS for stable operation under high power.
  3. Compatible with BLHeli_S and BlueJay firmware — switch freely for more versatile flight options.
  4. Custom-molded heat-dissipating case with a hollow design to enhance cooling efficiency.

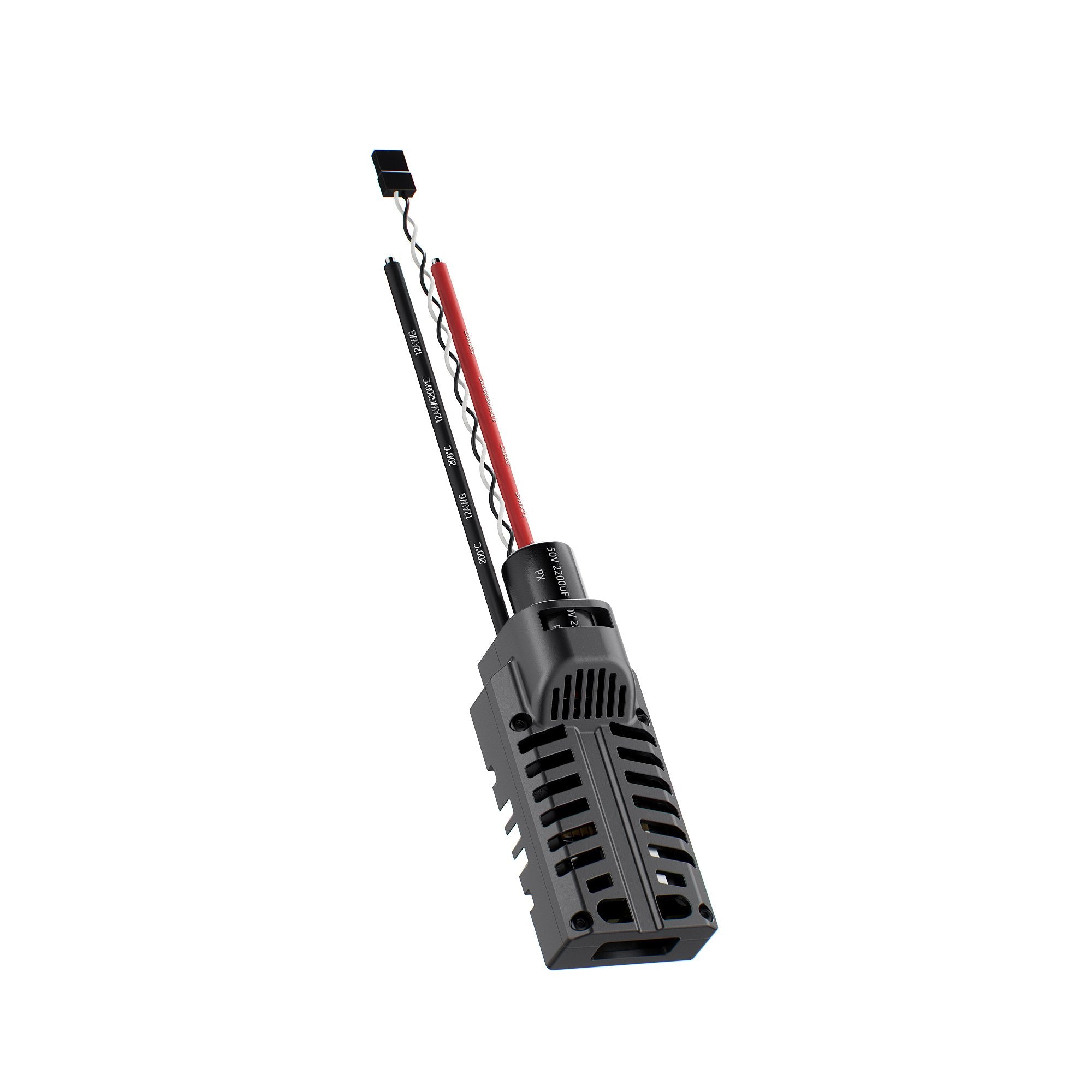

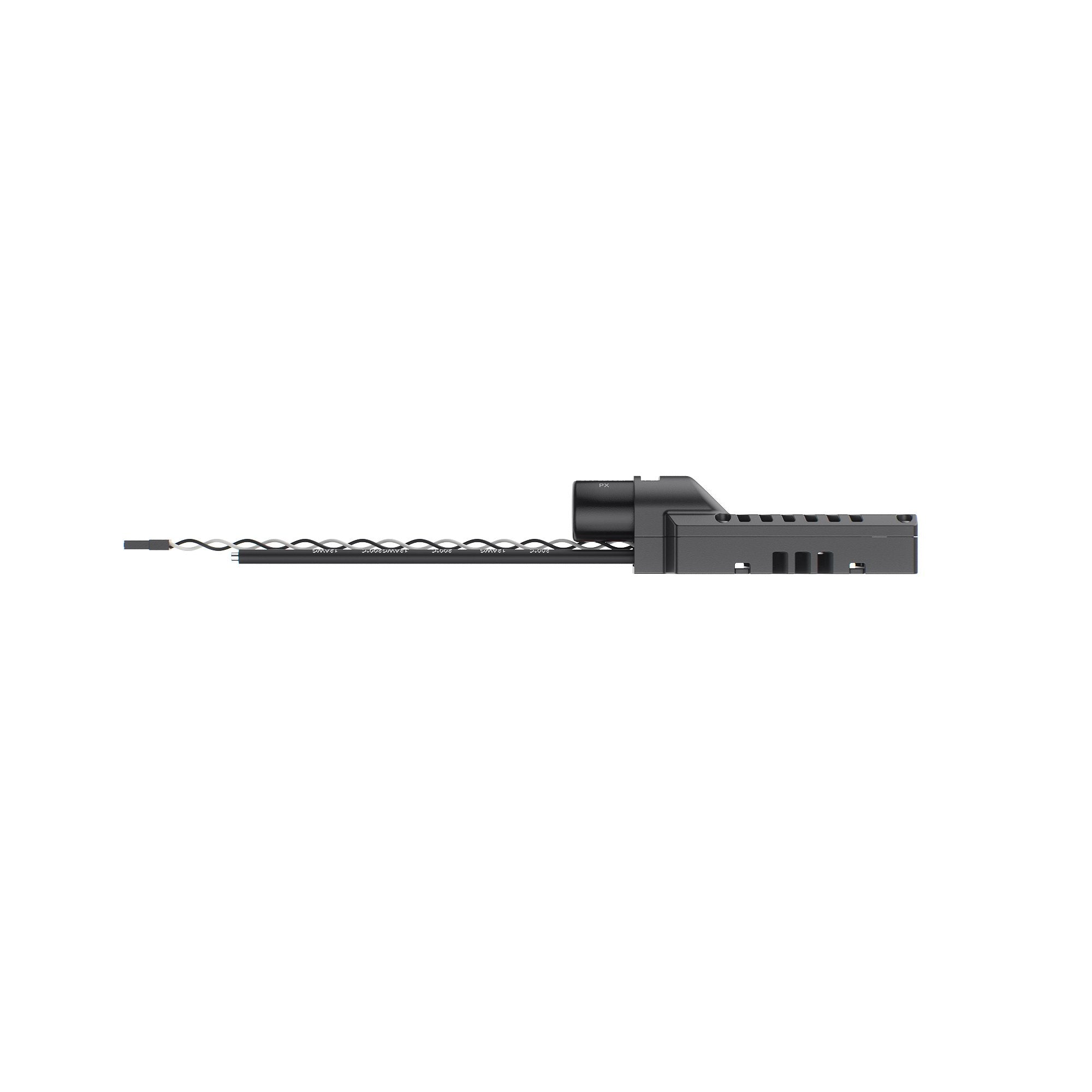

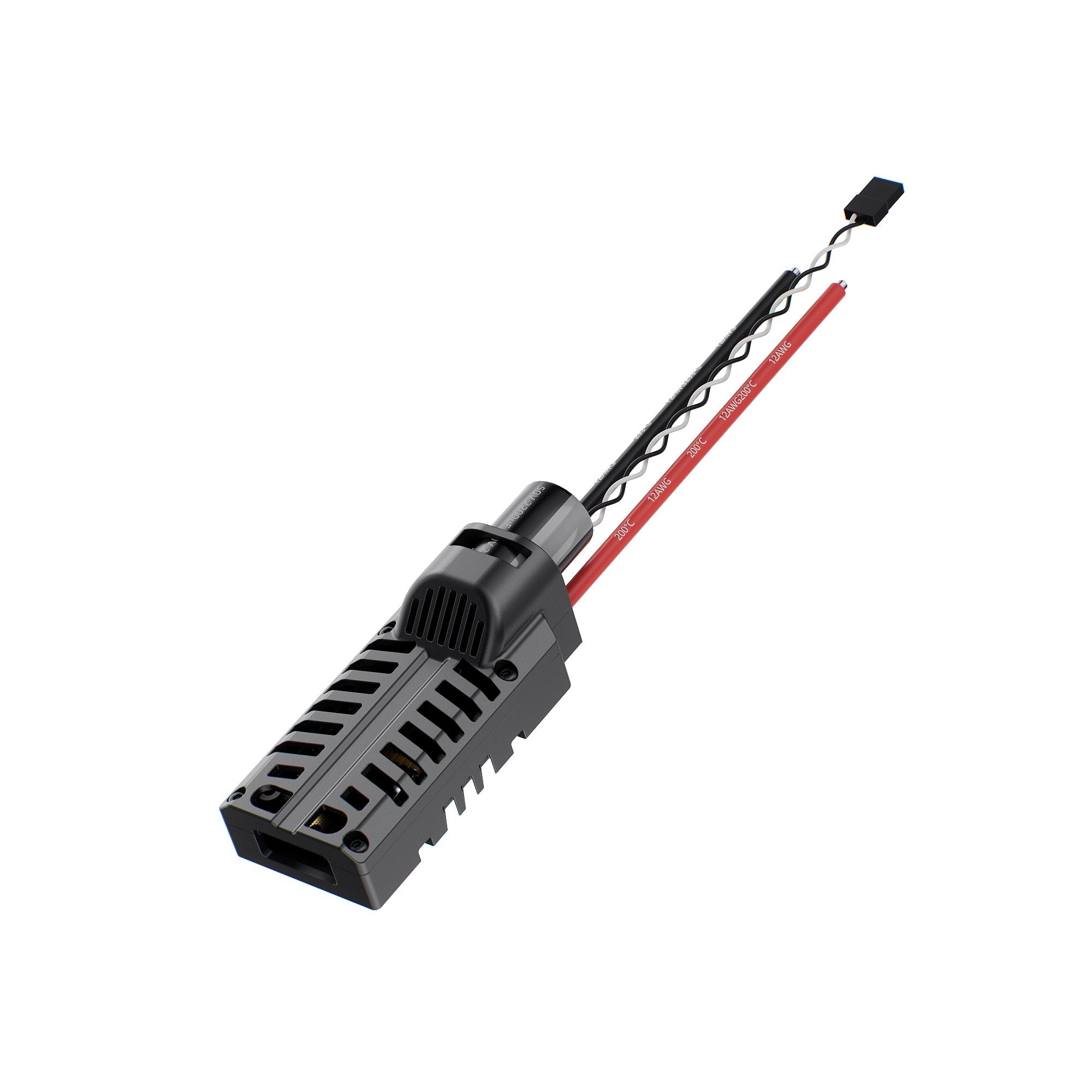

GEPRC TAKER S60 BLS 60A ESC (With Case Version)

Specifications

  • Input Voltage: 3-6S Lipo
  • Ammeter: Not Supported
  • Continuous Current: 60A
  • Burst Current: 65A(5 seconds)
  • Protocols Supported: Dshot 150/300/600
  • ESC Dimension: 32.5x55mm
  • Mounting Holes: 29.6×48.5mm
  • Case Material: PC
  • Case Dimension: 36x76mm
  • Weight: 57.2g

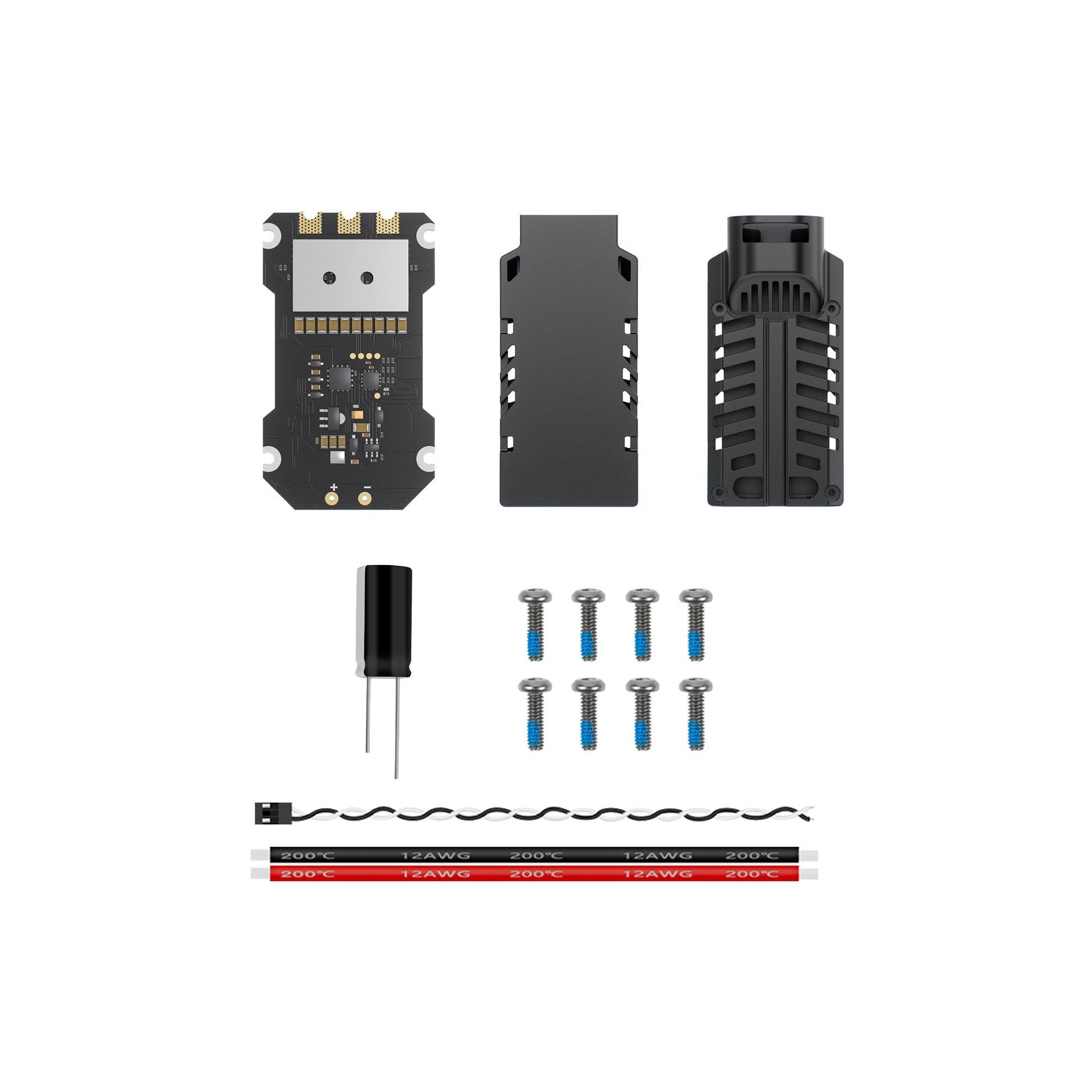

Includes

1 x TAKER S60 BLS 60A ESC

1 x 50V 2200μF Capacitor

1 x 12AWG (3.4mm²) Red Silicone Wire (240mm)

1 x 12AWG (3.4mm²) Black Silicone Wire (240mm)

1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)

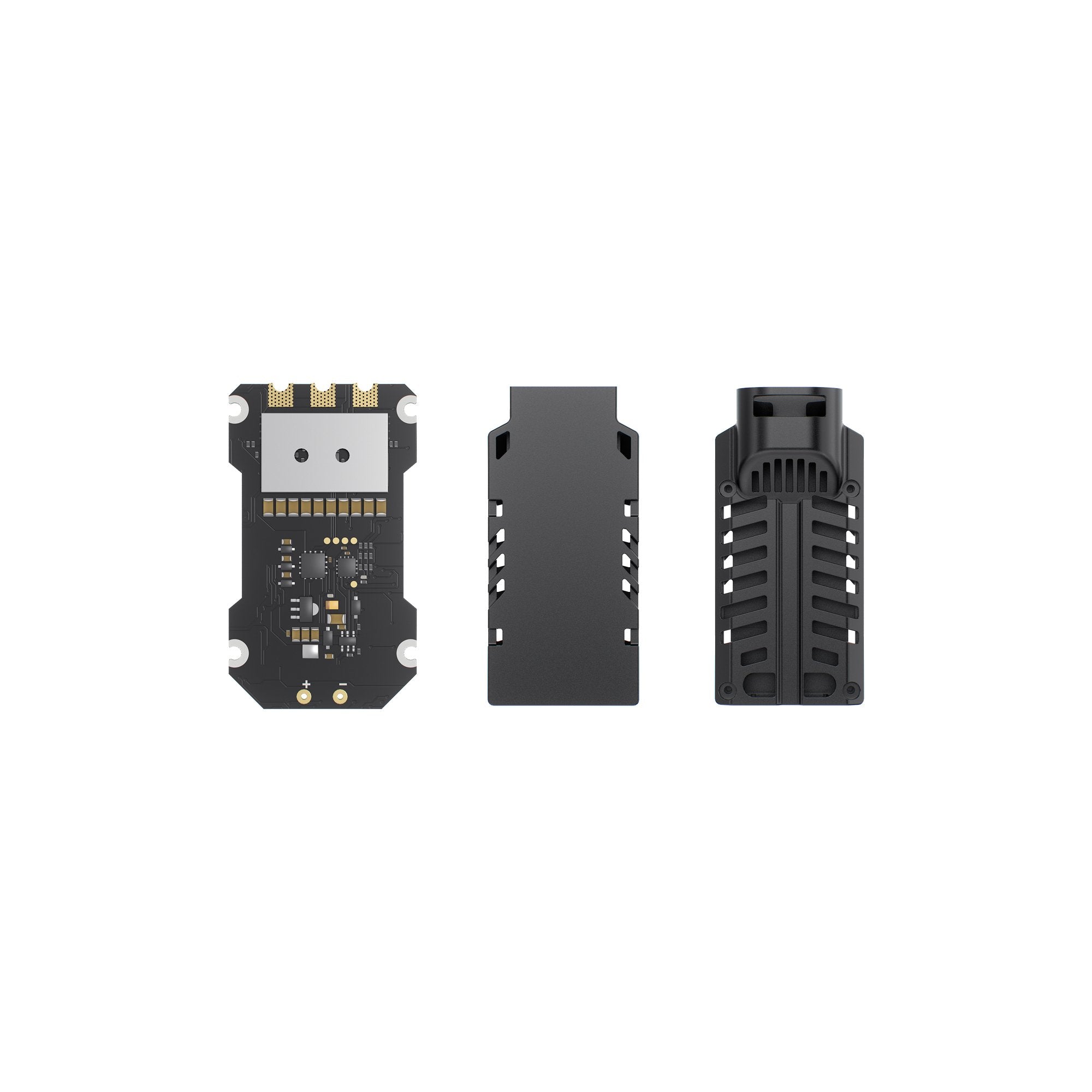

1 x Single ESC Top Case (Black) Molded Part

1 x Single ESC Bottom Case (Black) Molded Part

8 x Grade 12.9 Round Head Hex Socket Screws, Black Nickel Plated — M2*7 [Pre-applied Glue]

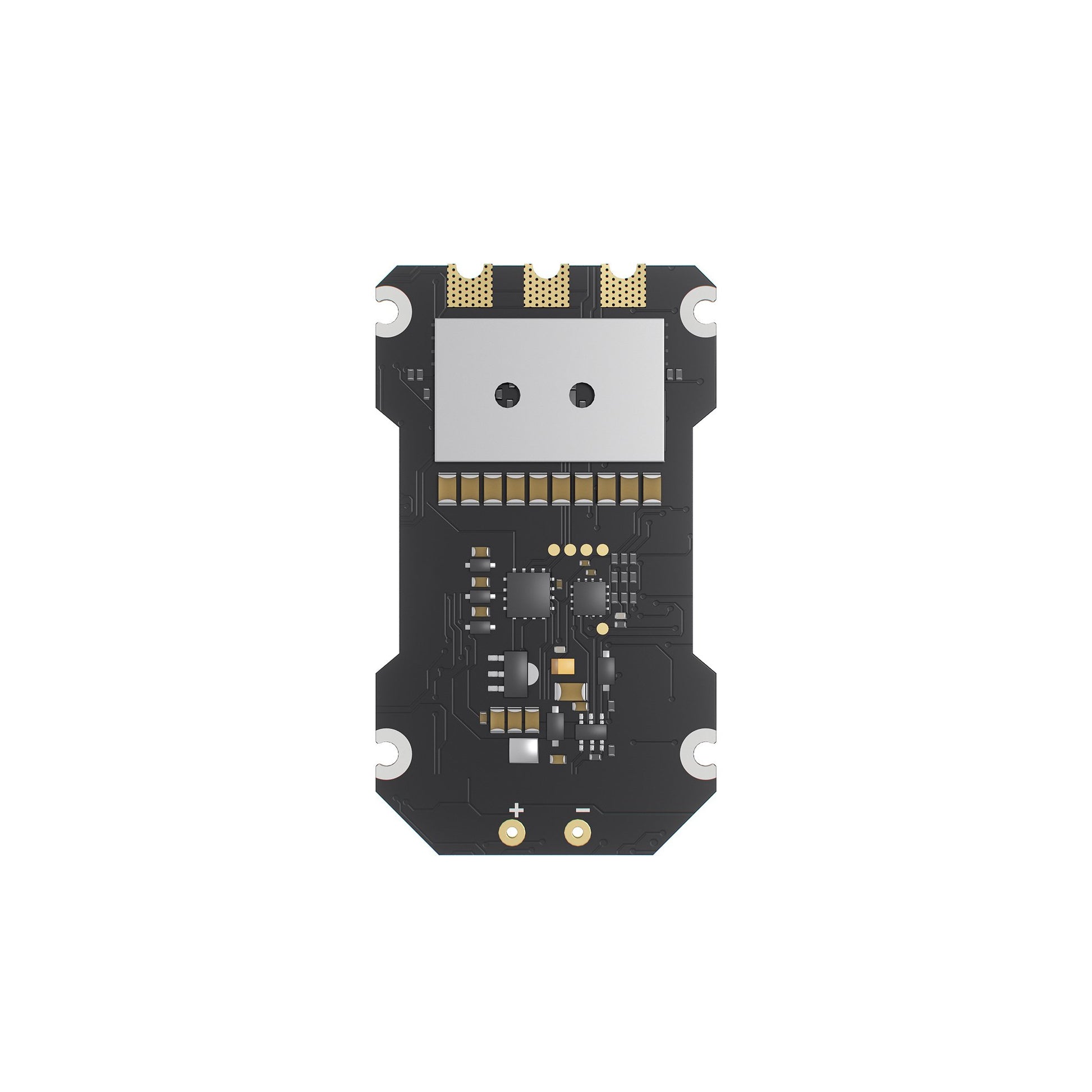

GEPRC TAKER S60 BLS 60A ESC

Specifications

  • Input Voltage: 3-6S Lipo
  • Ammeter: Not Supported
  • Continuous Current: 60A
  • Burst Current: 65A(5 seconds)
  • Protocols Supported: Dshot 150/300/600
  • Dimension: 32.5x55mm
  • Mounting Holes: 29.6×48.5mm
  • Weight: 11.2g

Includes

1 x TAKER S60 BLS 60A ESC

1 x 50V 2200μF Capacitor

1 x 12AWG (3.4mm²) Red Silicone Wire (240mm)

1 x 12AWG (3.4mm²) Black Silicone Wire (240mm)

1 x 2.54mm Dupont Line – 2P Single-end Socket Connector Cable (150mm)
