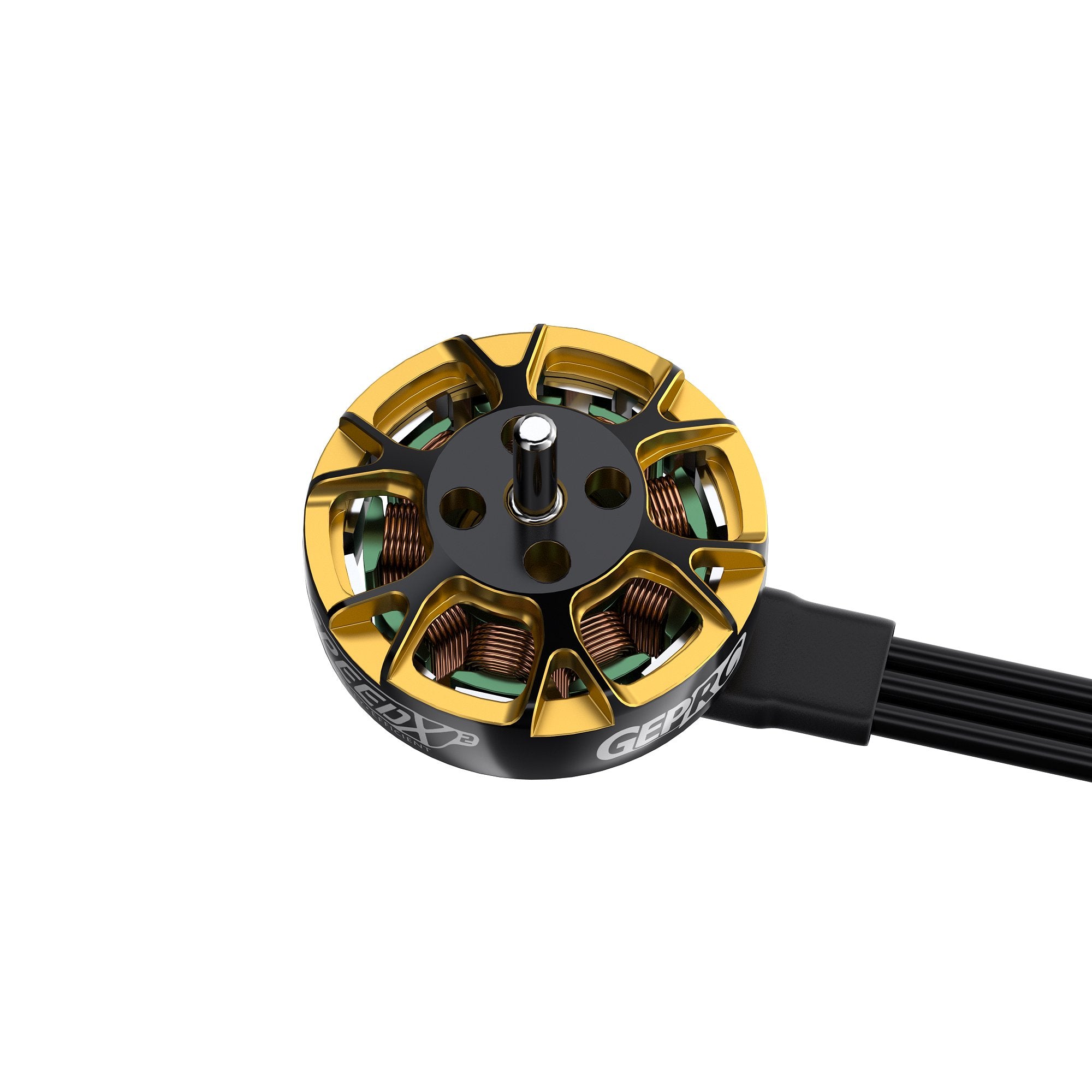

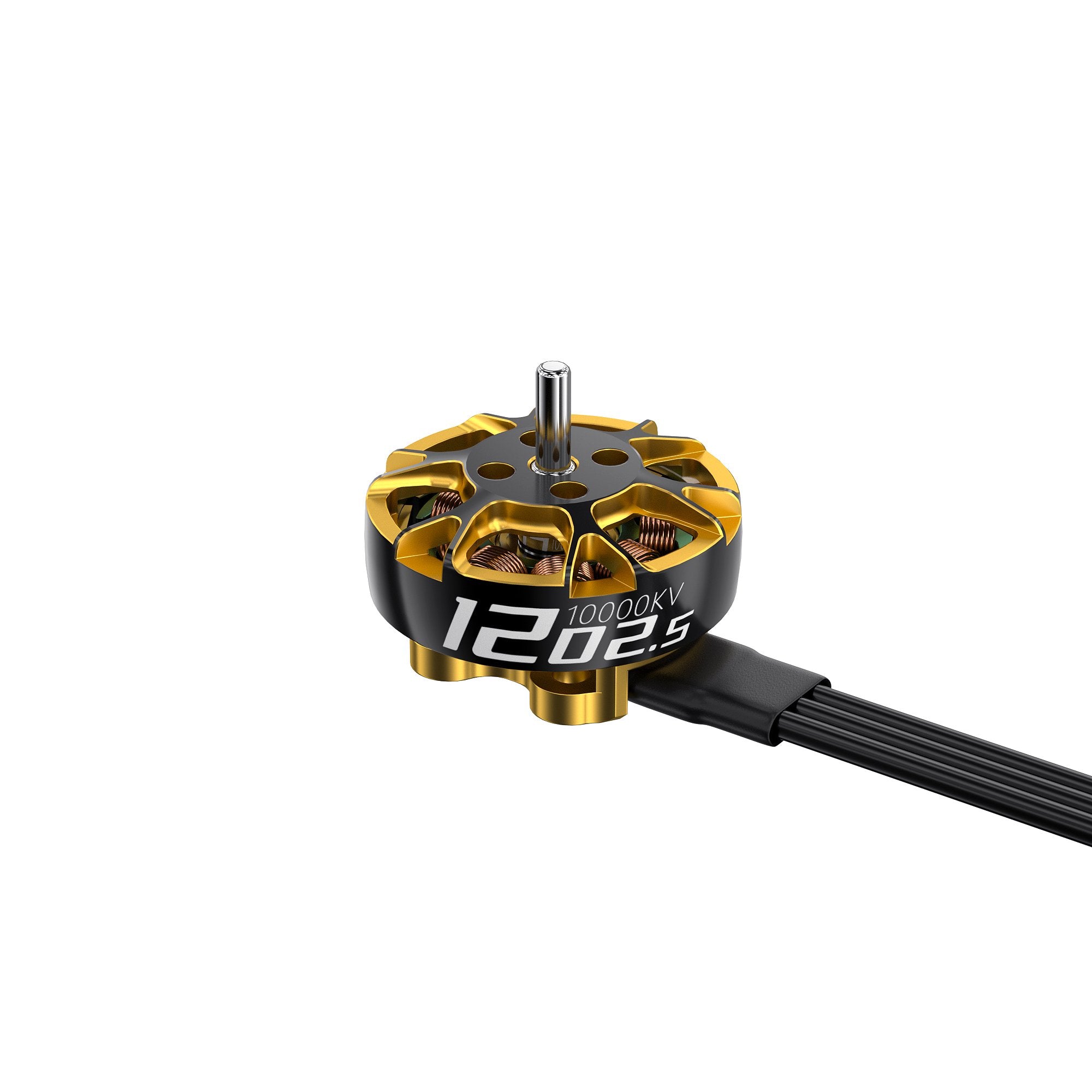

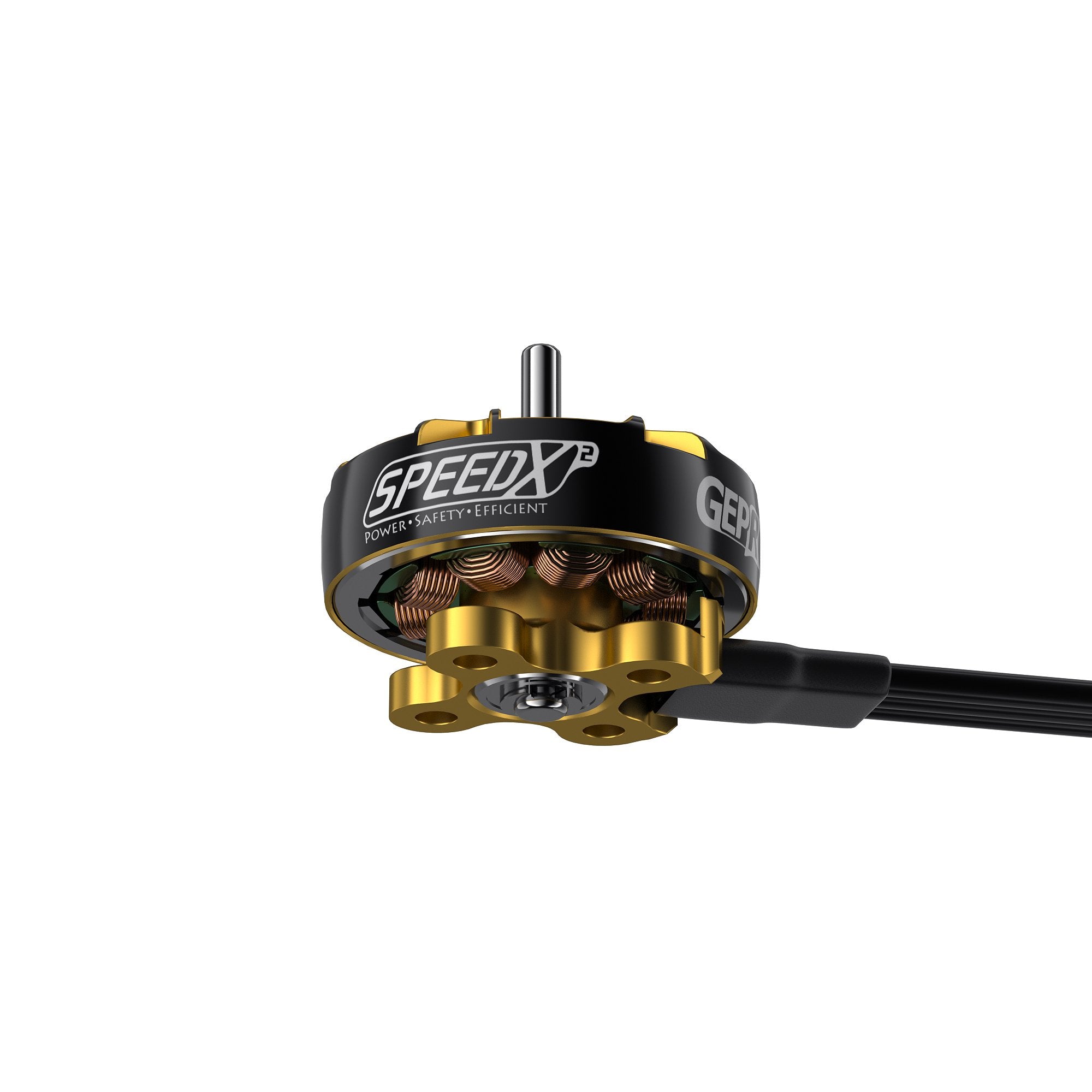

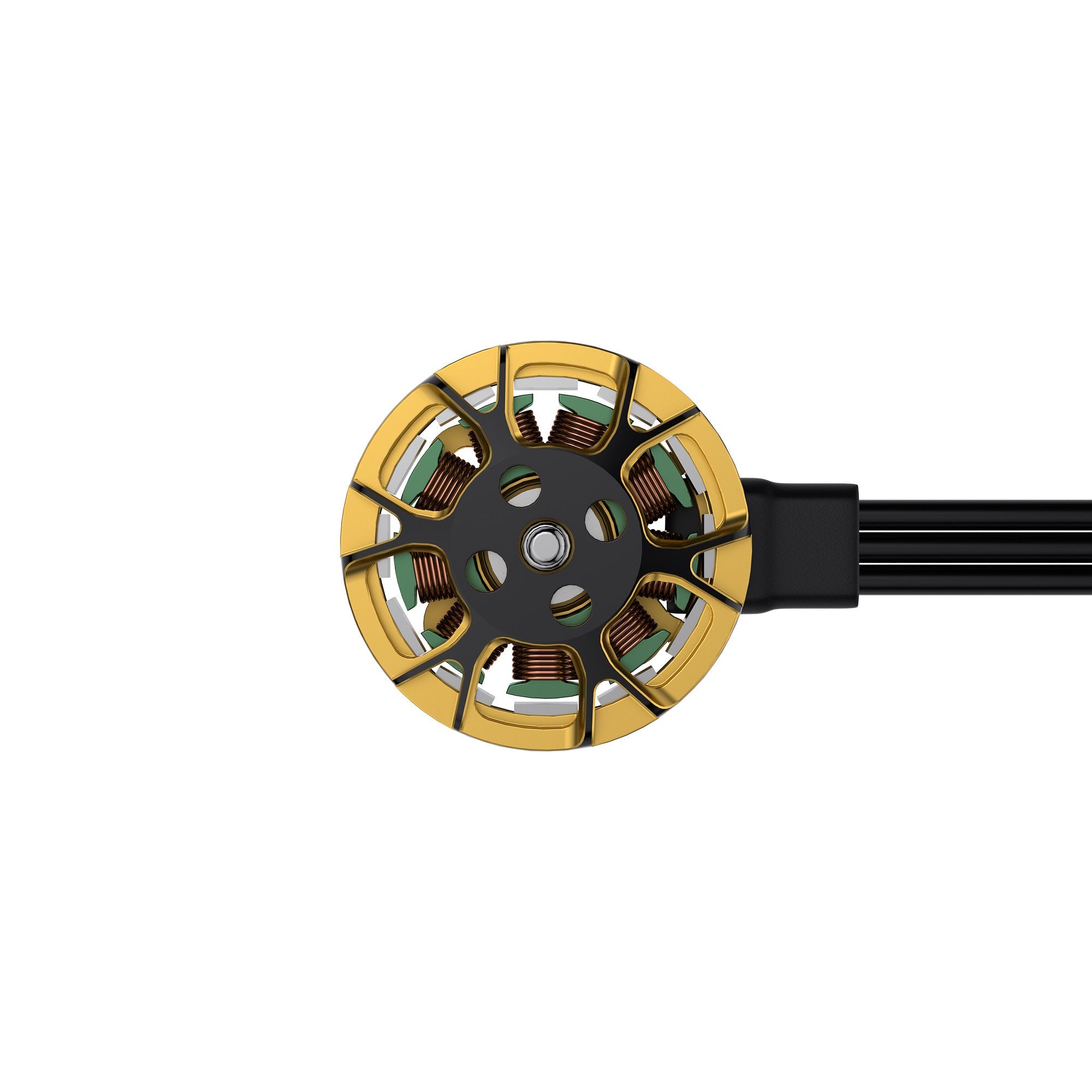

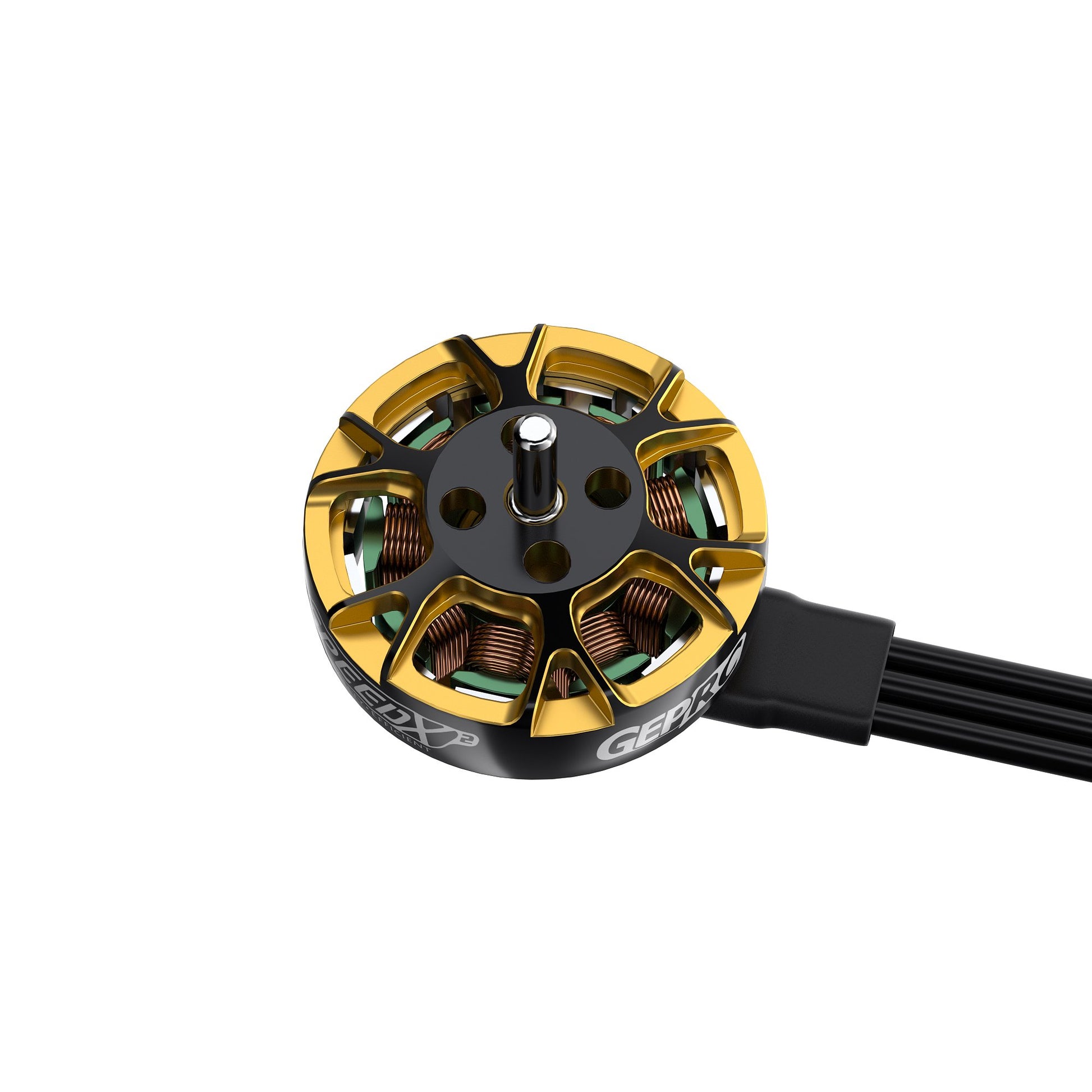

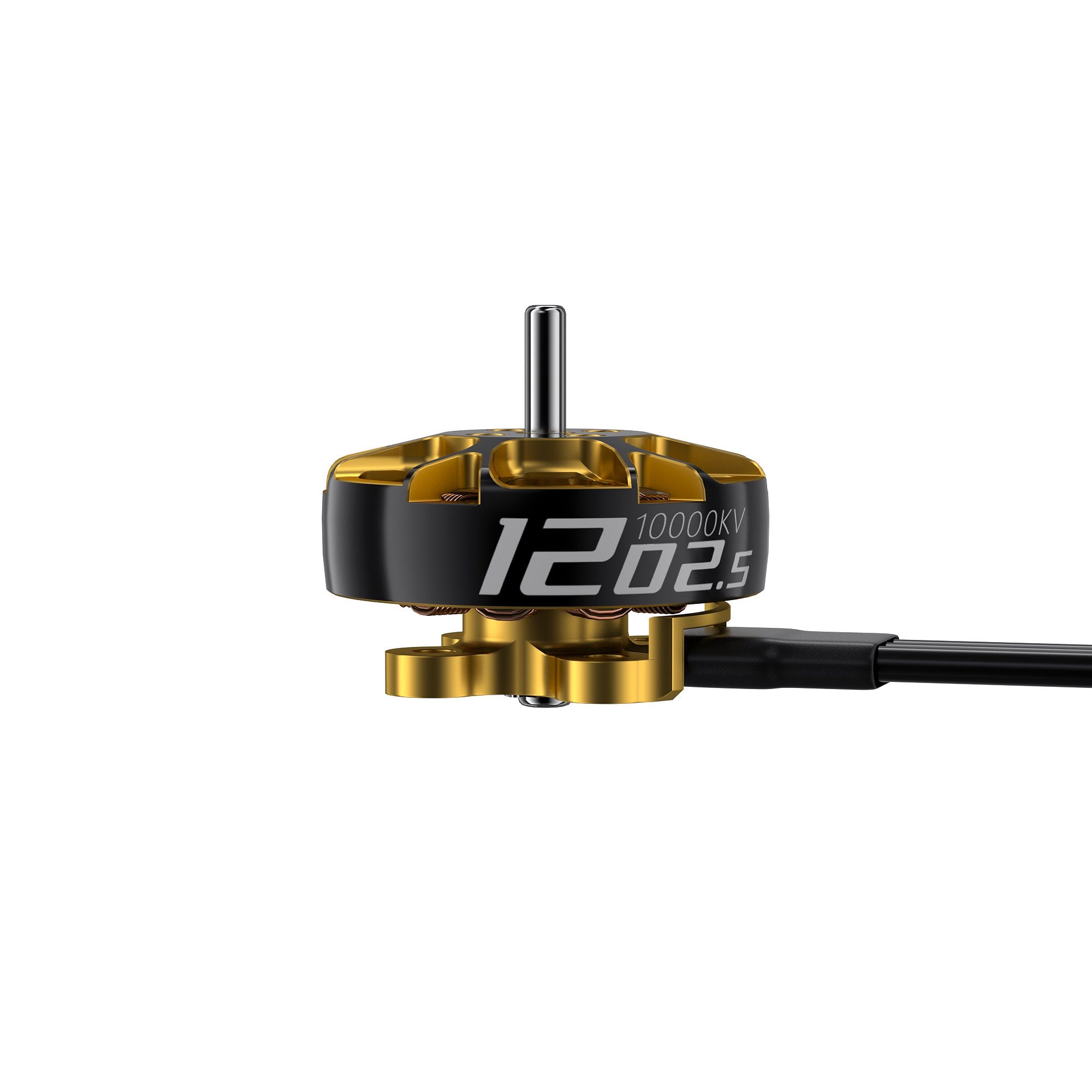

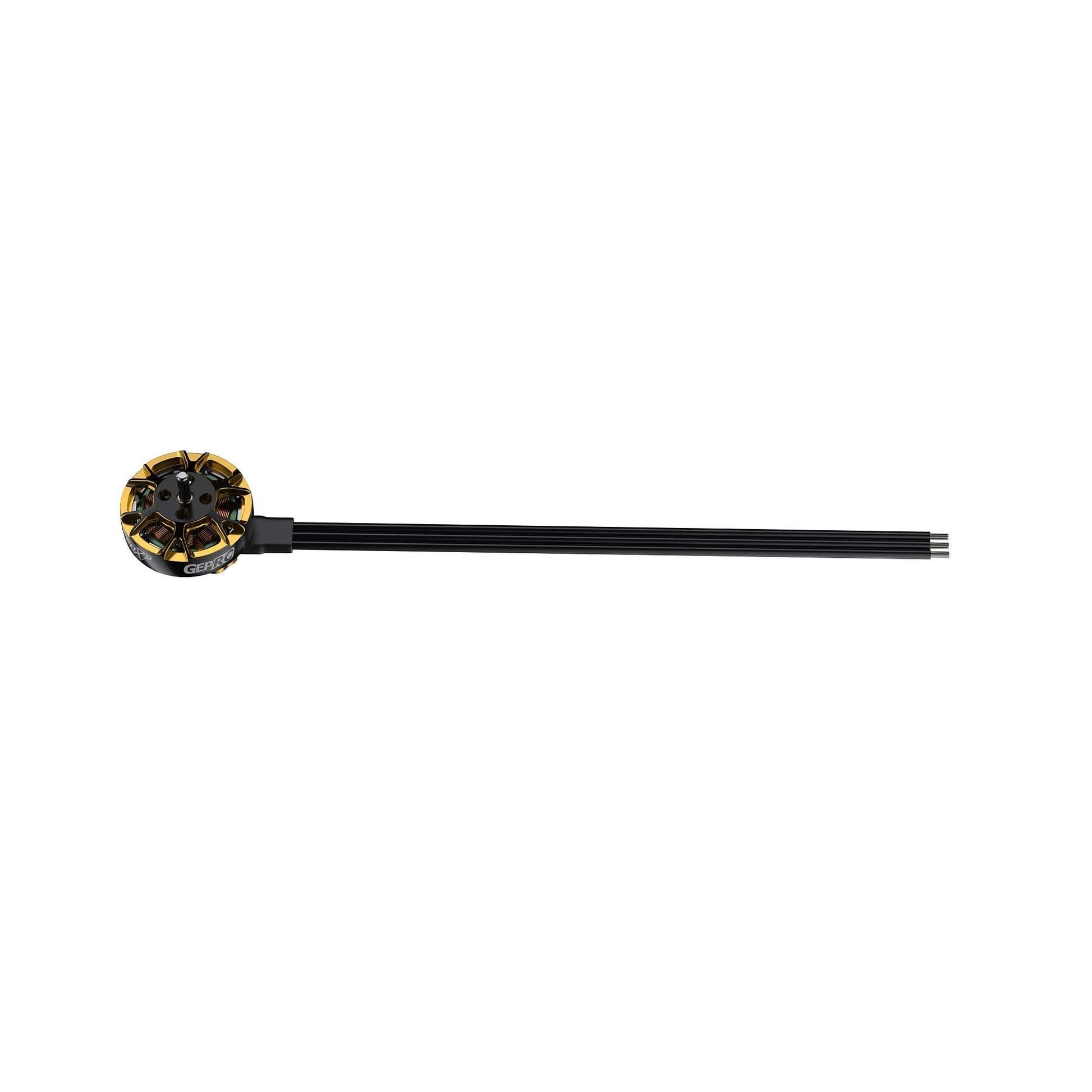

GEPRC SPEEDX2 1202.5 Motor

GEPRC SPEEDX2 1202.5 Motor

Product description

Specifications

10000KV

  • Model: GEPRC SPEEDX2 1202.5-10000KV
  • Configuration: 9N12P
  • Bearing: 415zz
  • Stator Diameter: 12mm
  • Stator Height: 2.5mm
  • Shaft Diameter: Φ1.5mm
  • Dimension: Φ16.17mm*9.2mm
  • Lead Wires: 28#AWG 60mm
  • Rated Voltage (LiPo): 1-2S
  • Maximum Power: 84W
  • Maximum Current: 11.3A
  • Recommended ESC: 12-20A
  • Mounting Patterns: 9mmx9mm(M2)
  • Color: Titanium gold
  • Weight: 4.53g (60MM wire length)
  • Compatible Models: 2-3 inch drones

15000KV

  • Model: GEPRC SPEEDX2 1202.5-15000KV
  • Configuration: 9N12P
  • Bearing: 415zz
  • Stator Diameter: 12mm
  • Stator Height: 2.5mm
  • Shaft Diameter: Φ1.5mm
  • Dimension: Φ16.17mm*9.2mm
  • Lead Wires: 28#AWG 60mm
  • Rated Voltage (LiPo): 1-2S
  • Maximum Power: 128W
  • Maximum Current: 17.3A
  • Recommended ESC: 12-20A
  • Mounting Patterns: 9mmx9mm(M2)
  • Color: Titanium gold
  • Weight: 4.53g (60MM wire length)
  • Compatible Models: 2-3 inch drones

Includes

1 x GEPRC SPEEDX2 1202.5 motor

6 x M2*4mm screws
