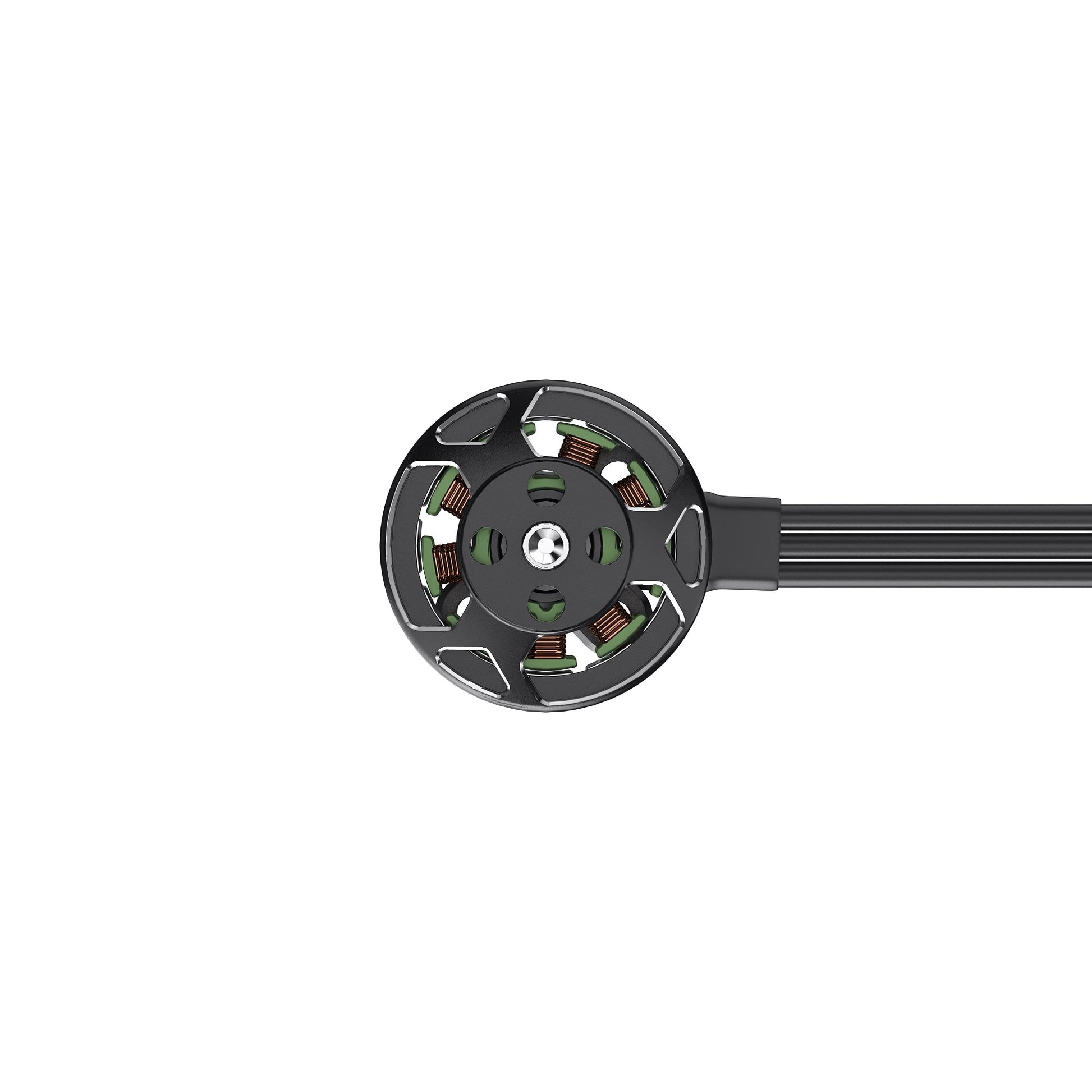

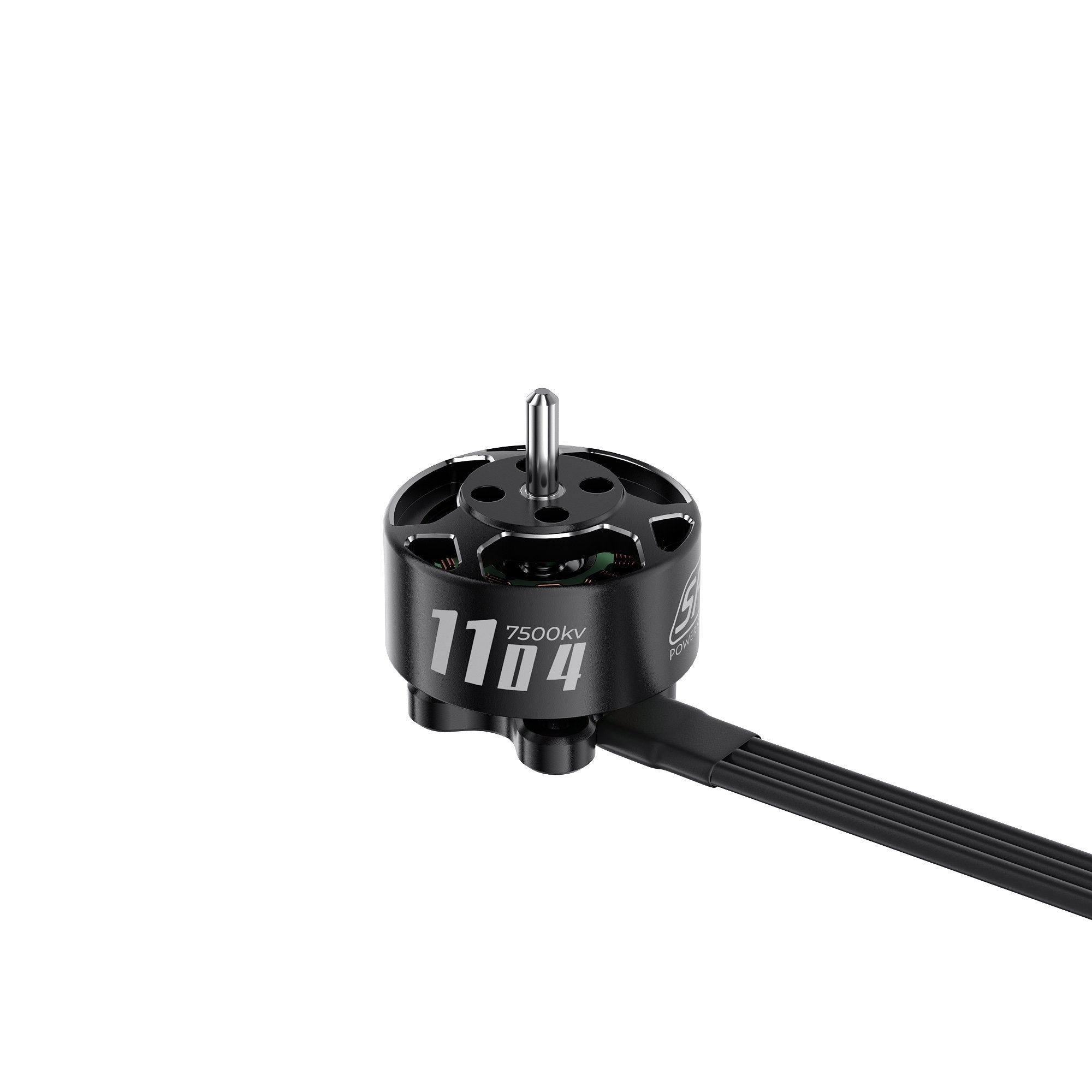

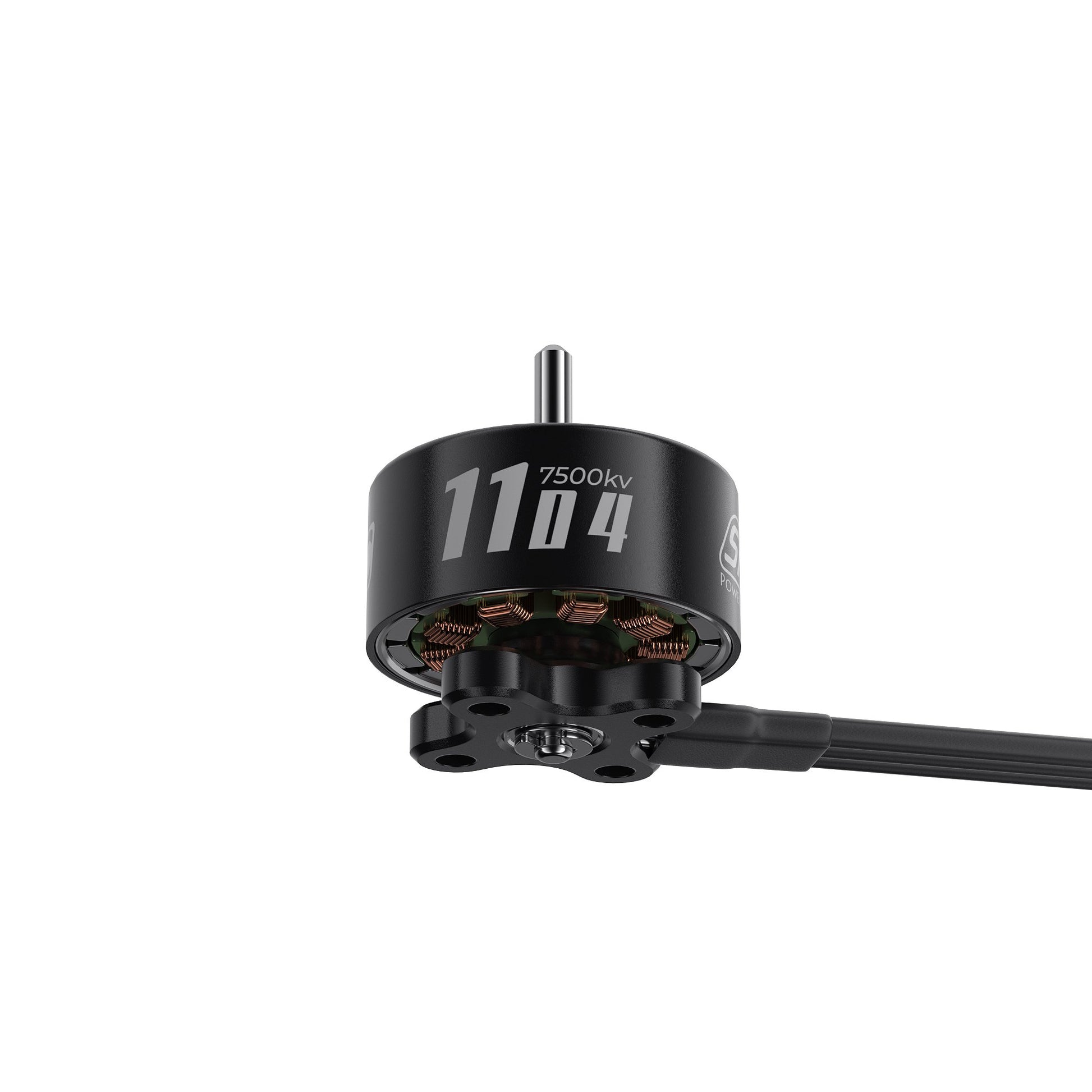

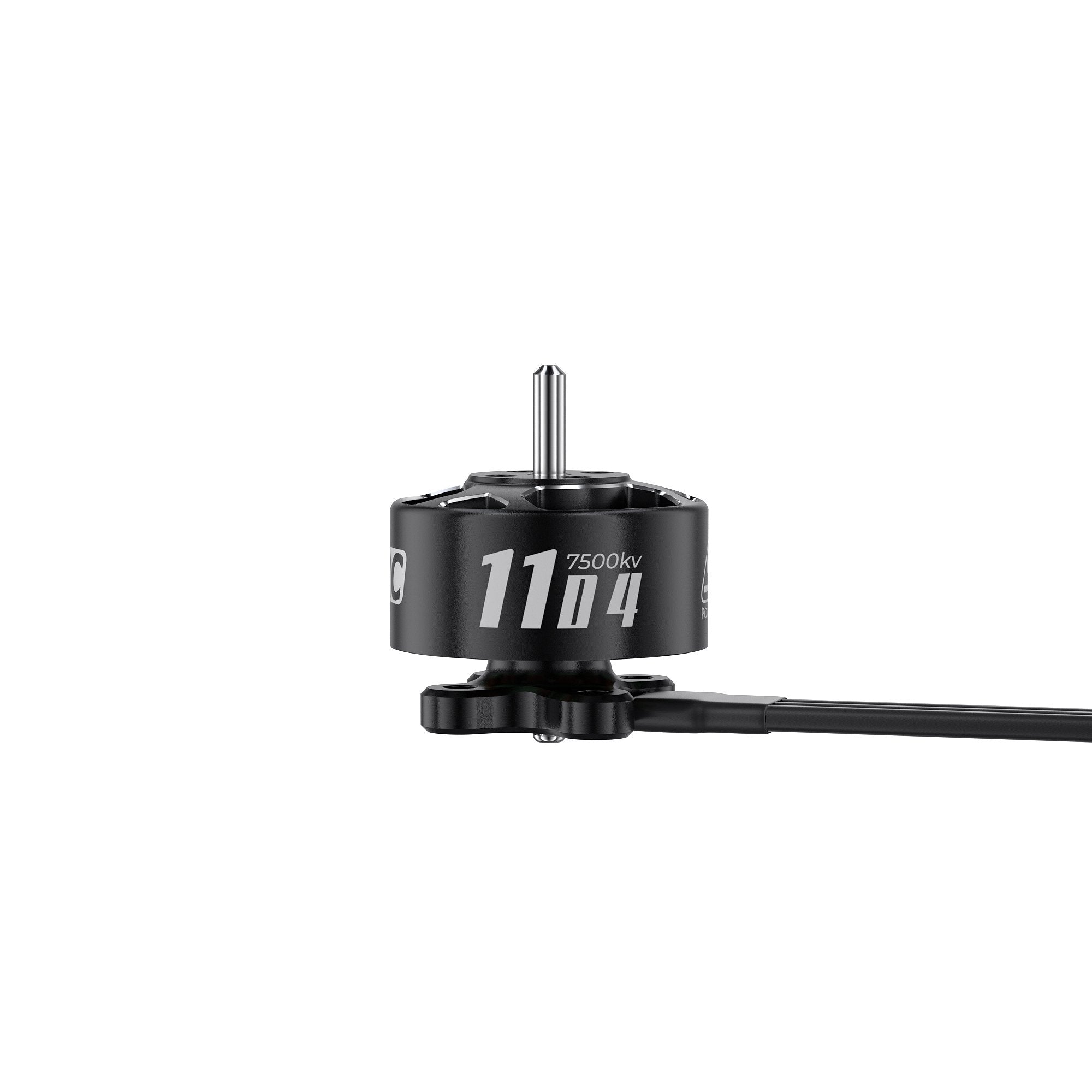

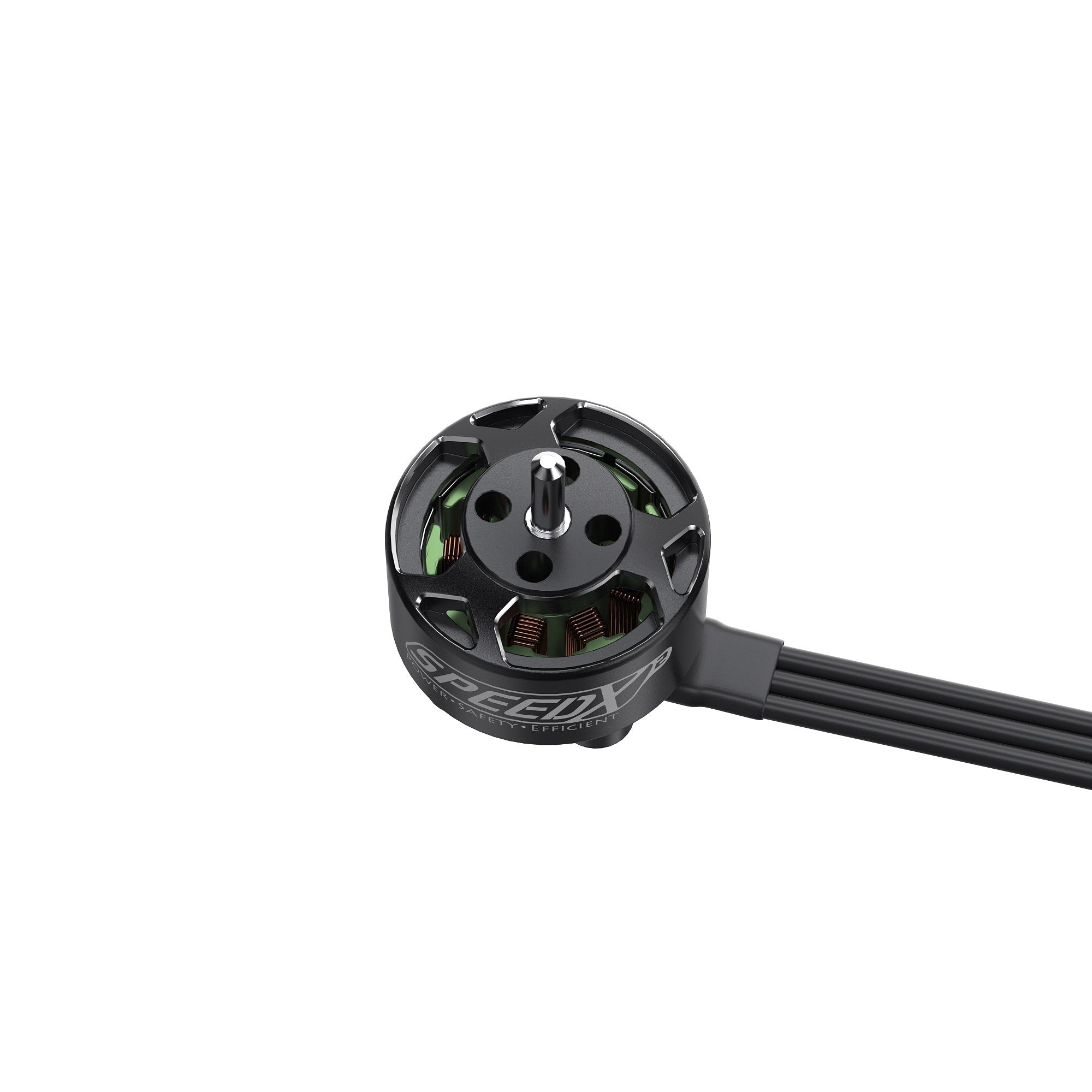

GEPRC SPEEDX2 1104 7500KV Motor

Regular price $10.99
Sale price $10.99 Regular price
Unit price
  • Free Shipping & Returns: On all orders over $75

GEPRC SPEEDX2 1104 7500KV Motor

GEPRC SPEEDX2 1104 7500KV Motor

Product description

Feature

  1. 7500KV ultra-high rotational speed, compatible with 3S batteries , with faster response and better control.

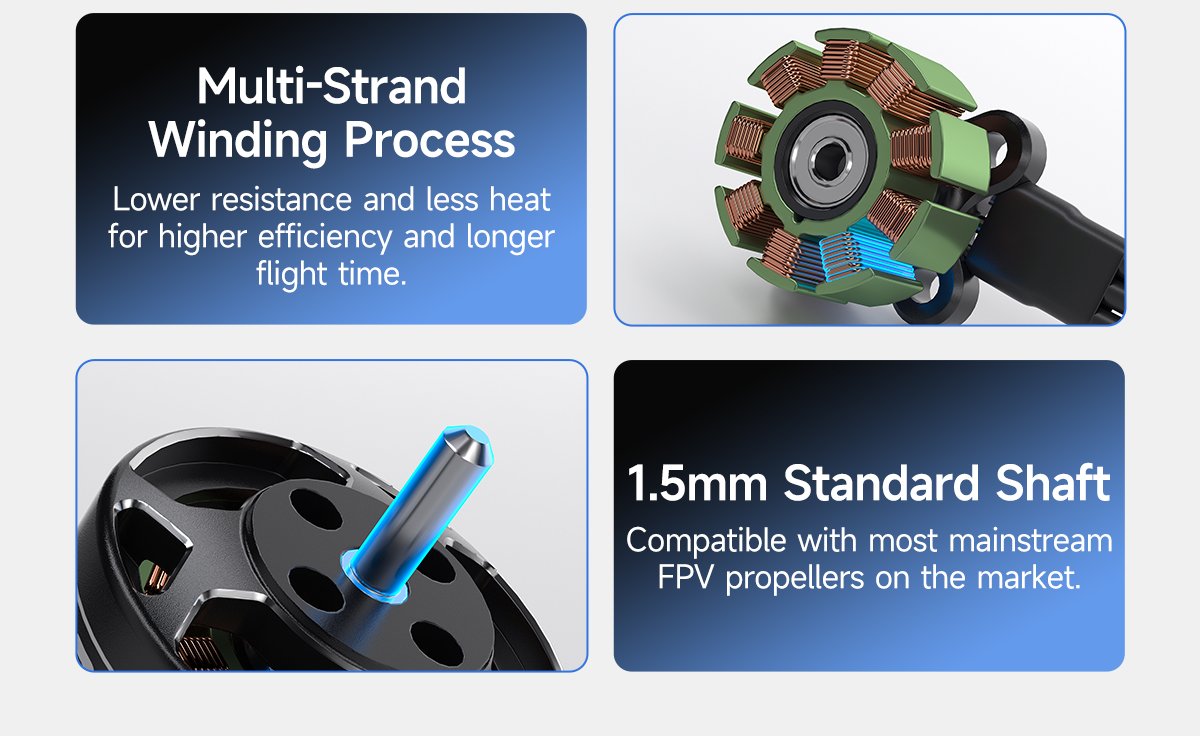

  2. Multi-strand winding and large hollow design for lower copper loss and faster heat dissipation.

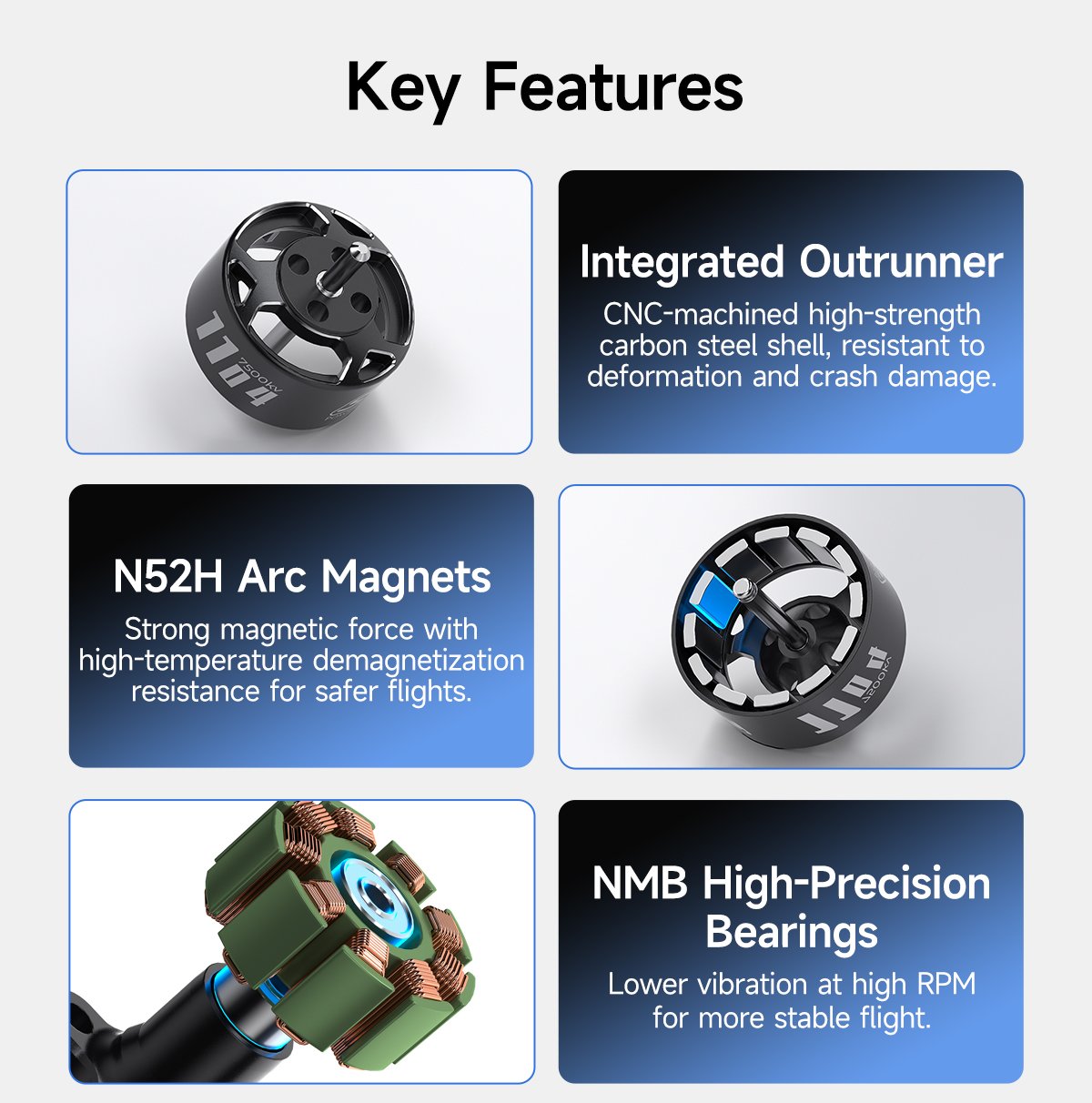

  3. 9N12P slot-type stator assembly, NSK/NMB high-precision bearings, ensuring stability without vibration even at high rotational speeds.
  4. The high-precision CNC integrated molding aviation aluminum alloy shell weighs only 5.2g and has stronger impact resistance.

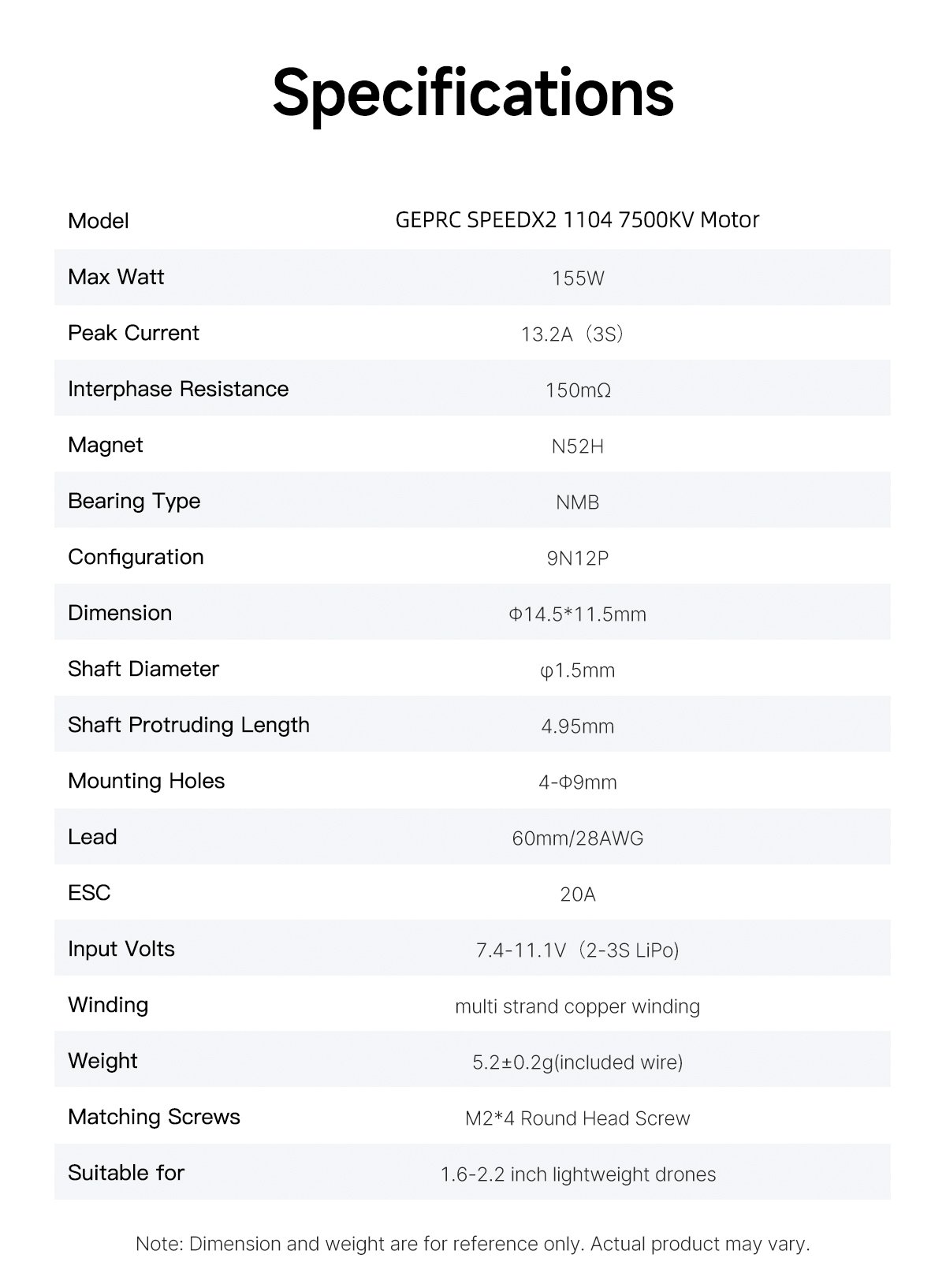

Specifications

  • Model: GEPRC SPEEDX2 1104 7500KV Motor
  • Max Watt:155W
  • Peak current: 13.2A(3S)
  • Interphase resistance:150mΩ
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 9N12P

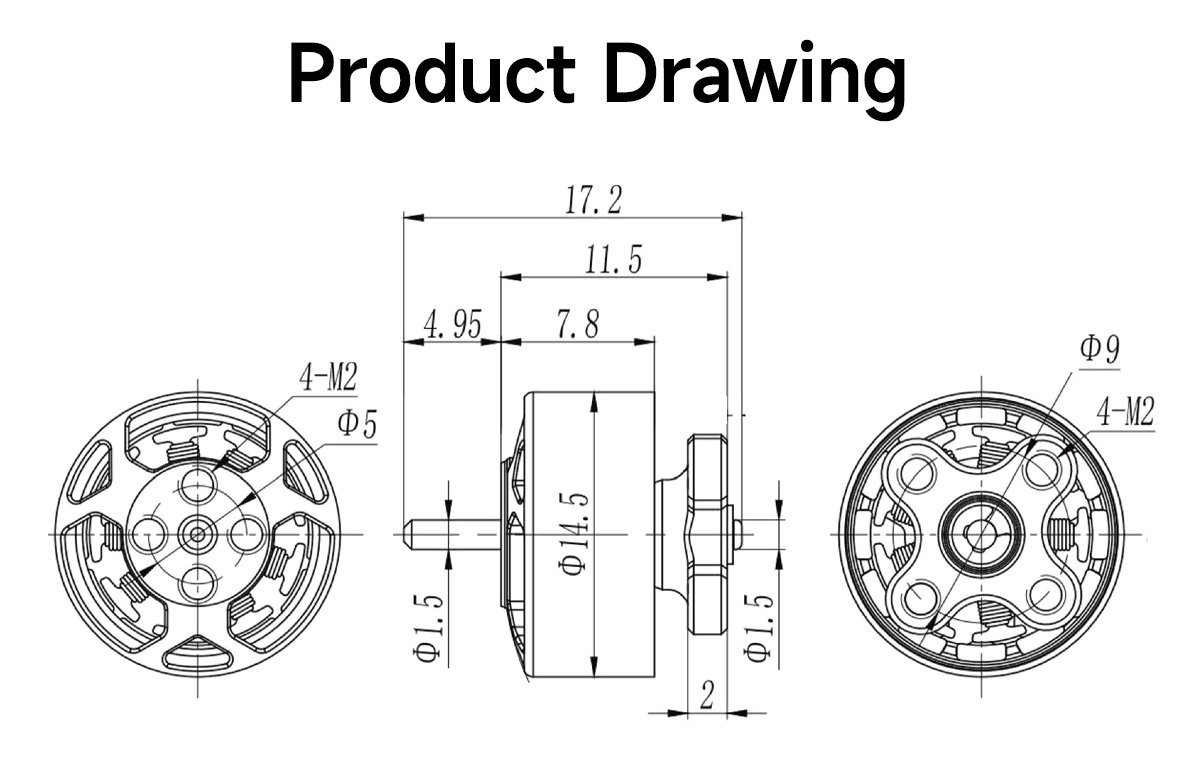

  • Dimension: Φ14.5*11.5mm
  • Shaft Diameter: φ1.5mm
  • Shaft Protruding Length: 4.95mm
  • Mounting holes: 4-Φ9mm

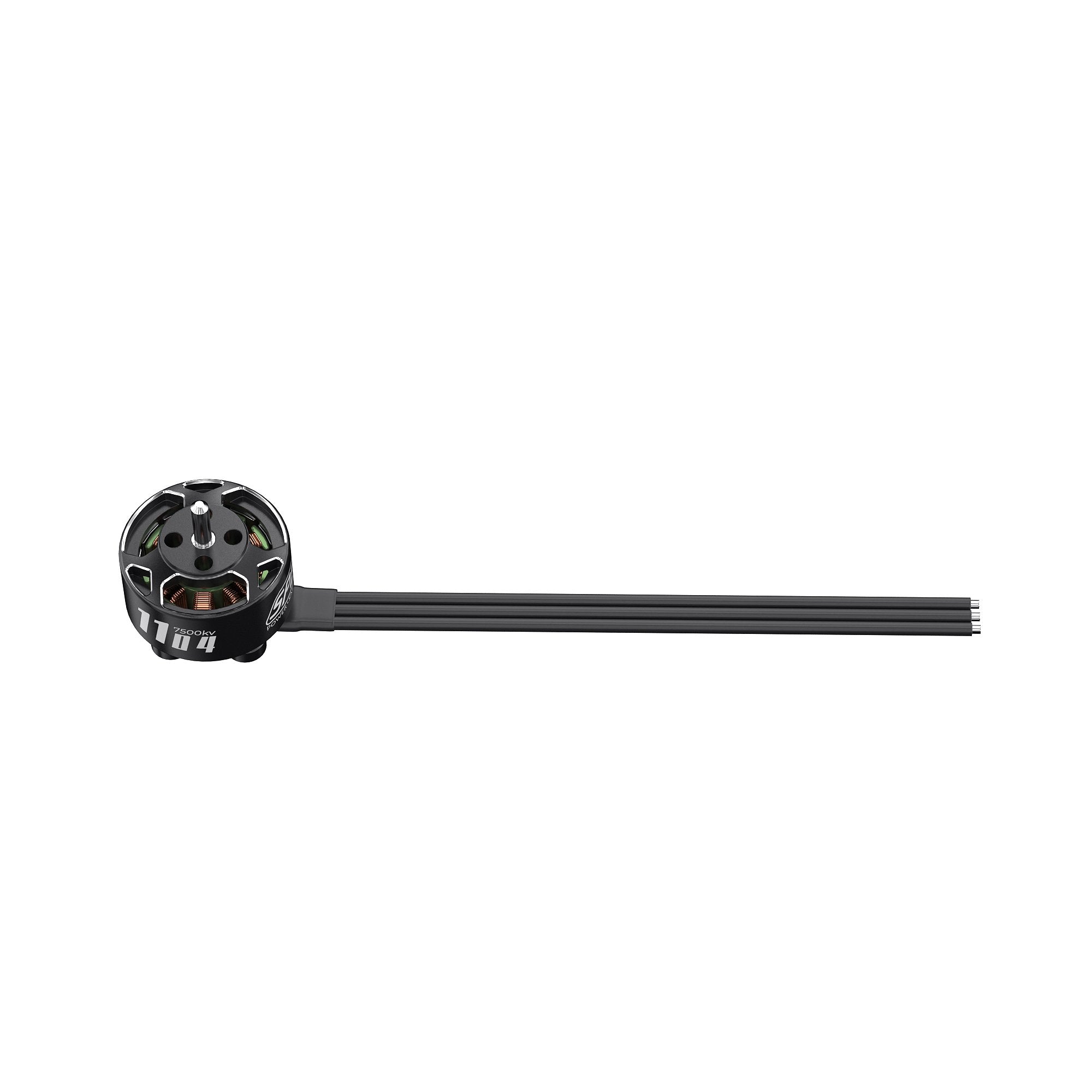

  • Lead: 60mm/28AWG
  • ESC:20A
  • Input Volts: 7.4-11.1V(2-3S LiPo)
  • Winding: multi strand copper winding
  • Weight: 5.2±0.2g(included wire)
  • Suitable for: 1.6-2.2 inch lightweight drones

Includes

1 x GEPRC SPEEDX2 1104 7500KV Motor

6 x M2*4 Round Head Screw
