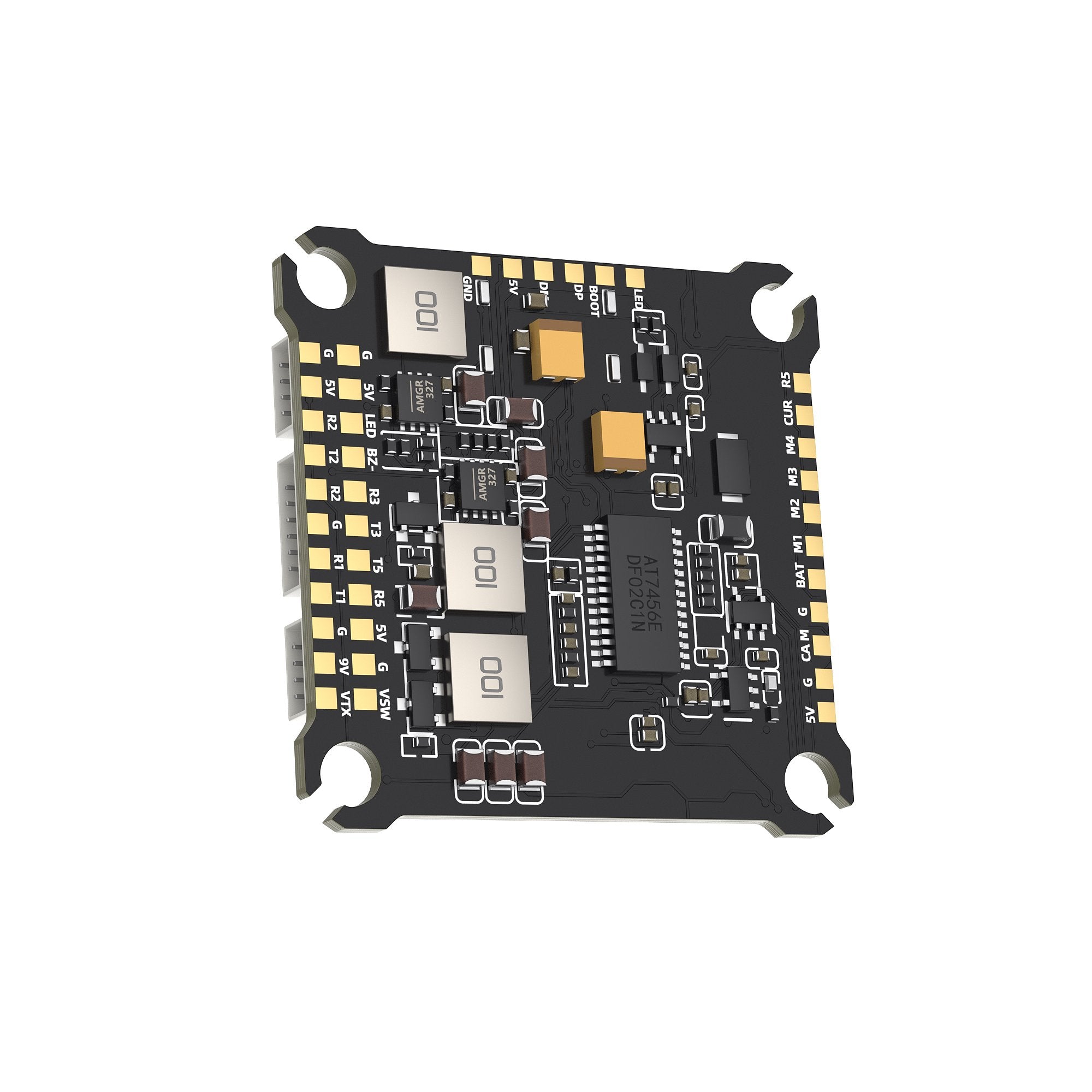

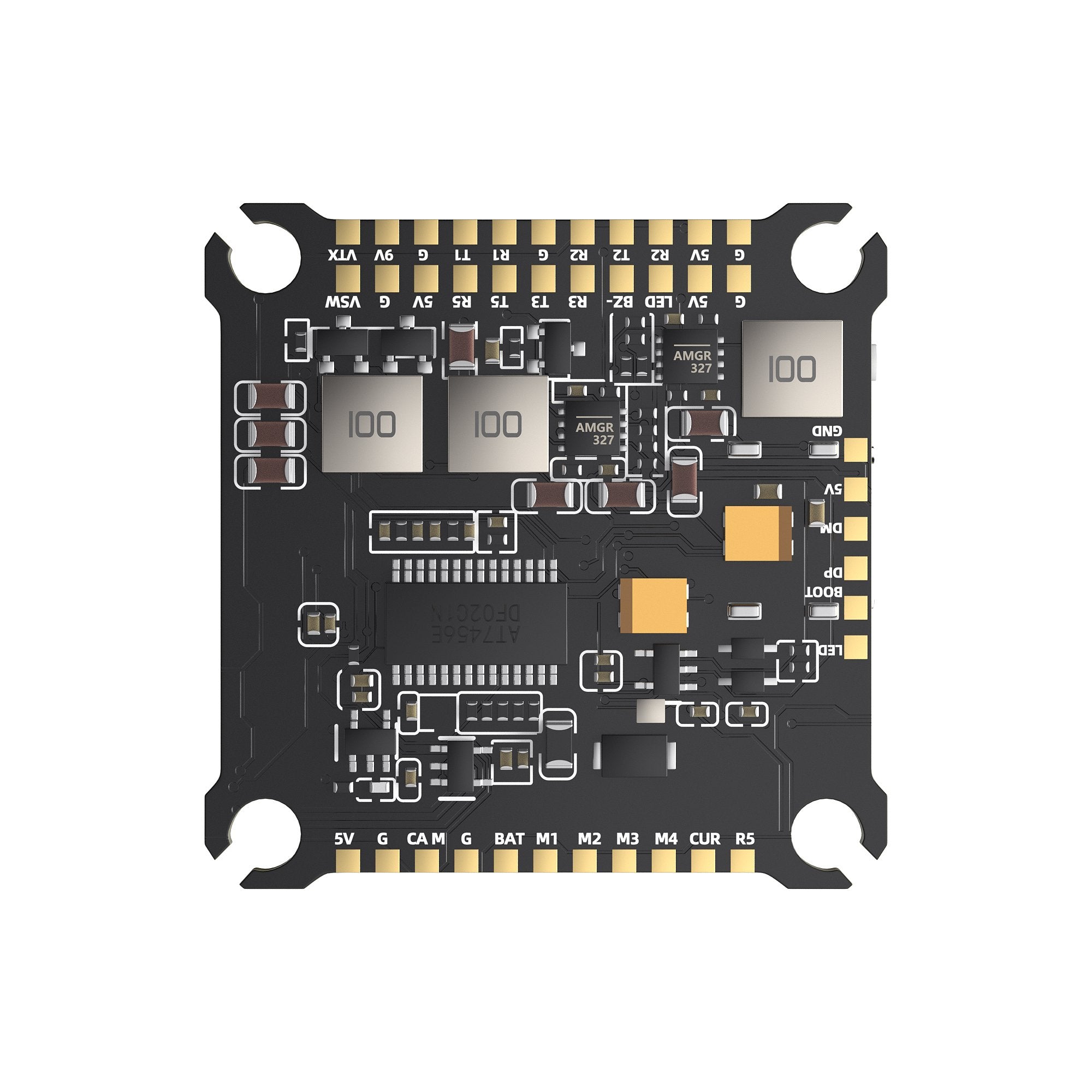

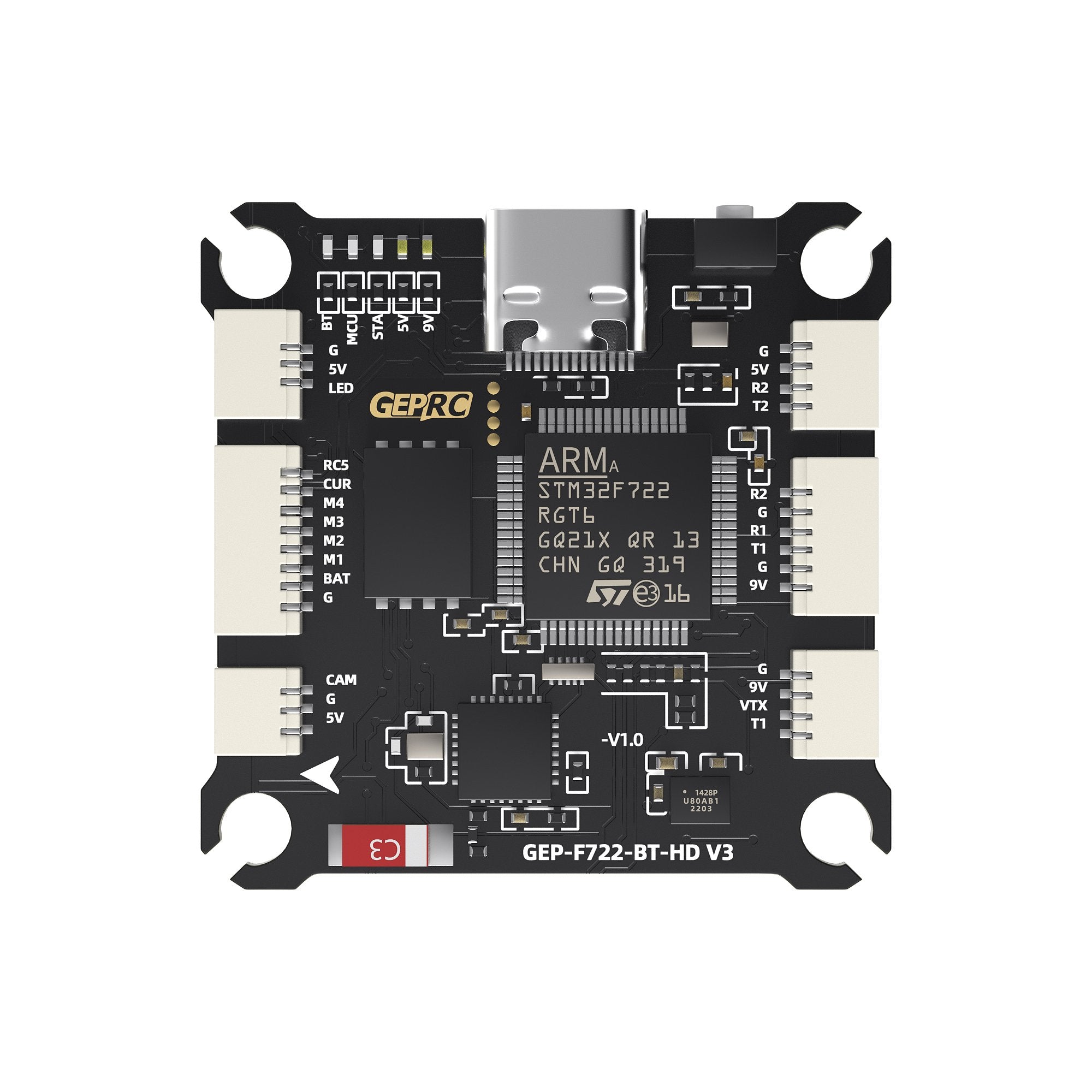

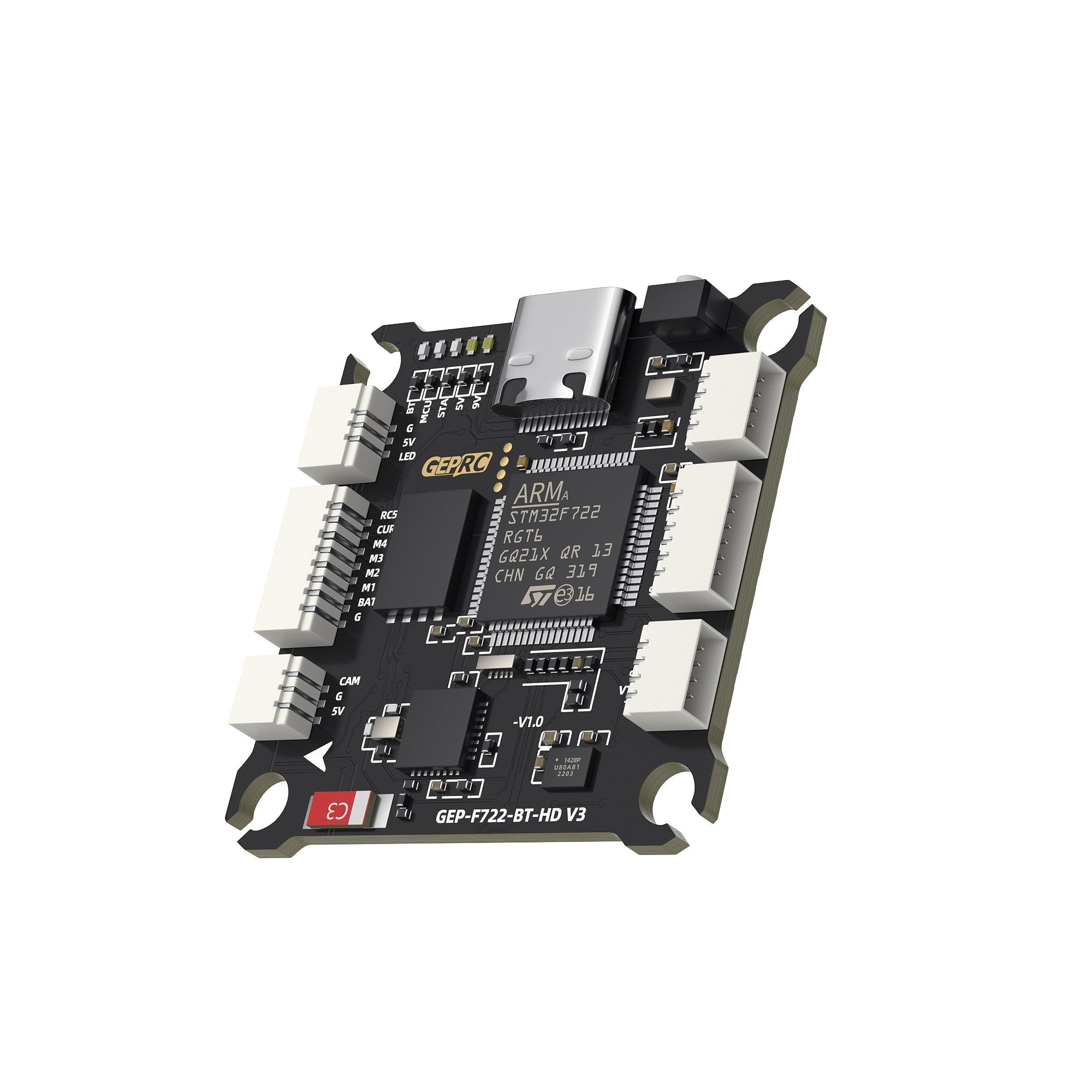

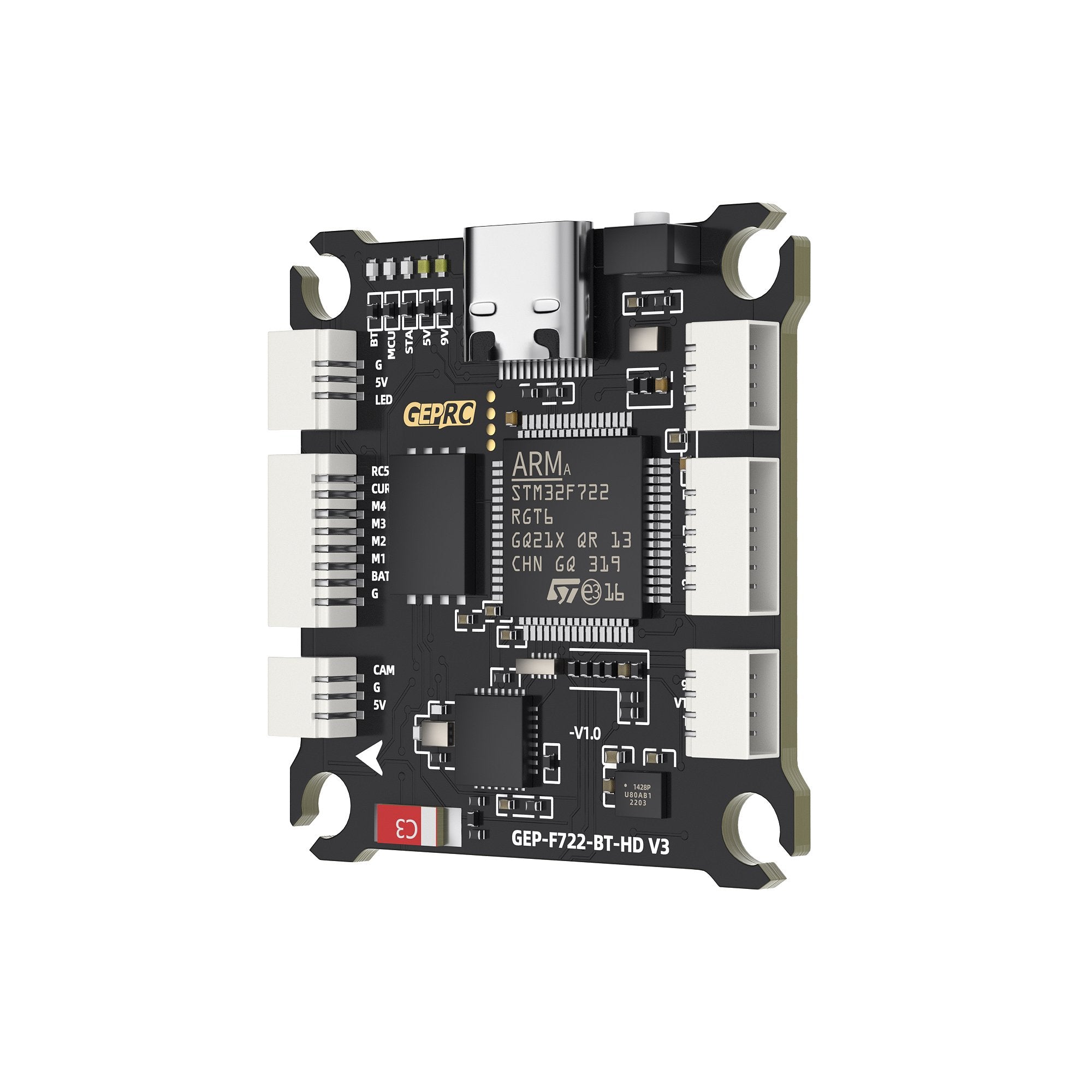

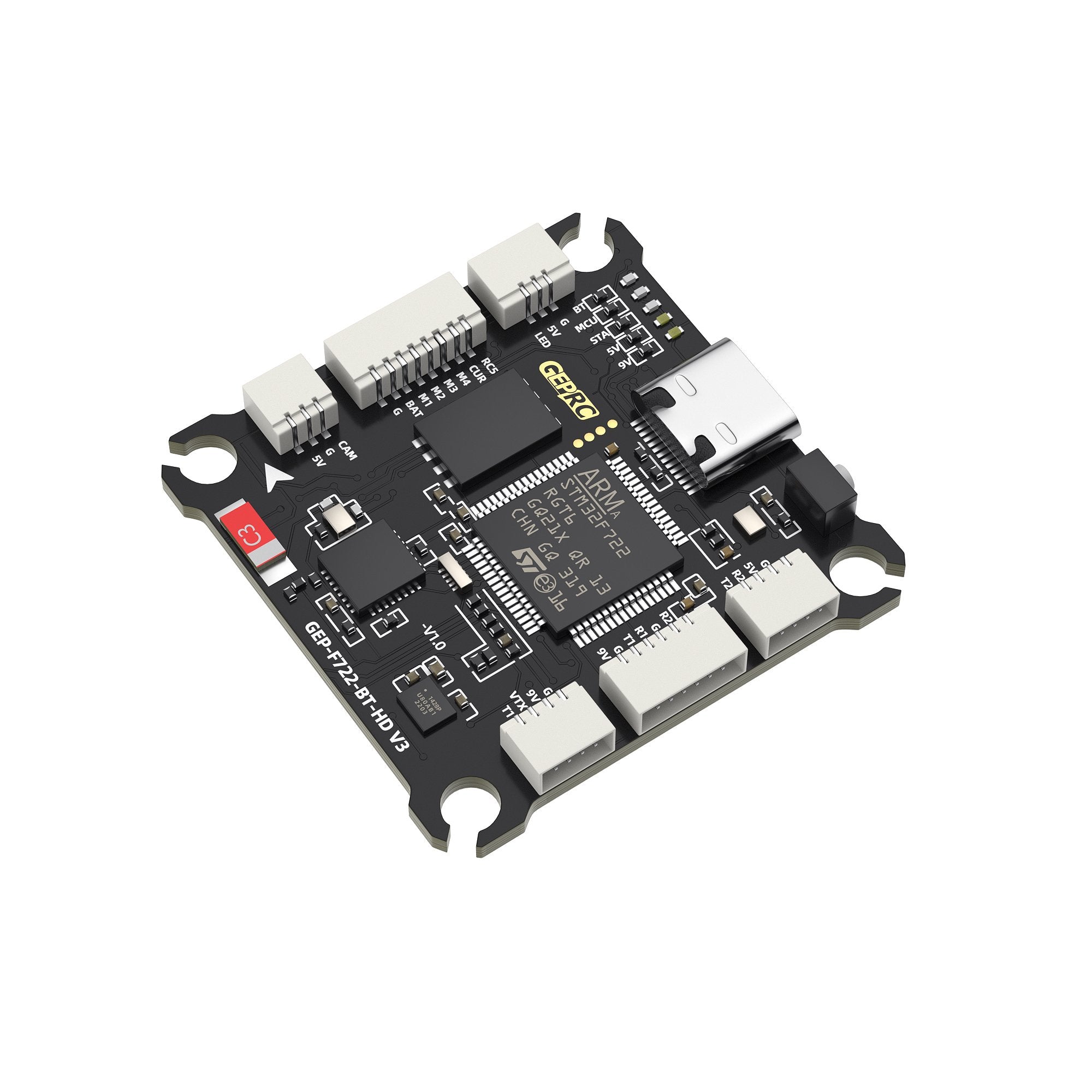

GEP-F722-BT-HD V3 Flight Controller

Feature

1. Use mainstream STM32F722 chip
2.  Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4.  Support Bluetooth parameter tuning
5. Integrated LC filter
6.  Upgrade type-C USB interface
7. Directly plugs into the DJI Air Unit
8.  Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
9. Integrated Barometer
10.  9V@2.5A + 5V@3A dual independent BEC

Specifications

• MCU: STM32F722
• IMU：ICM42688-P(SPI)
• Air Unit Connection: Directly plugs into the DJI Air Unit
• Black Box: 512M onboard
• Bluetooth: Supported
• Barometer: Supported
• USB Interface: Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,9V@2.5A dual BEC
• Firmware Target: GEPRCF722_BT_HD_V3
• Size：36.9×36.9mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
• Input Voltage: 3-6S LiPo
• UART: 5 groups (UART4 fixed for Bluetooth)
• Power Filter: Integrated LC filter
• Weight: 8.2g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
