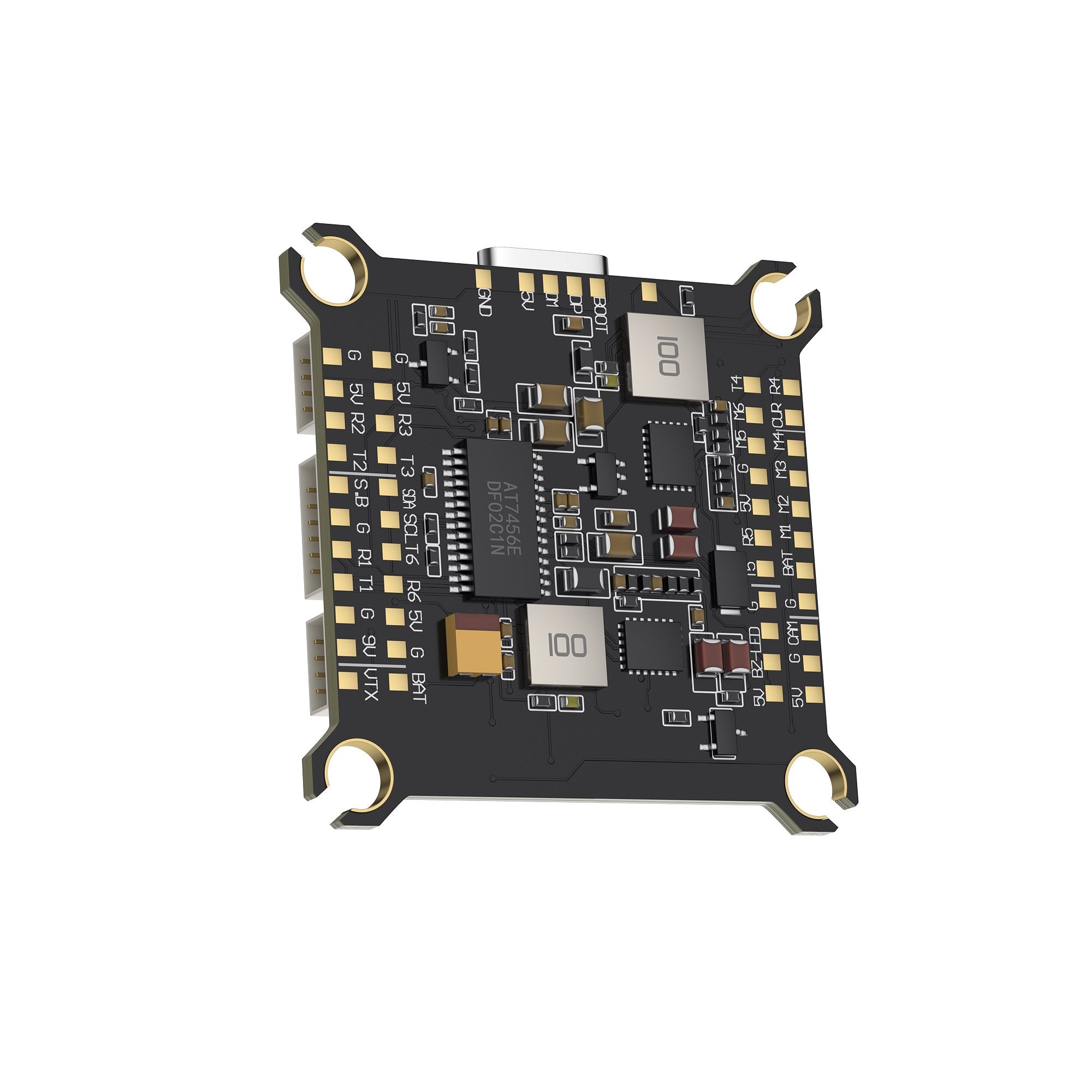

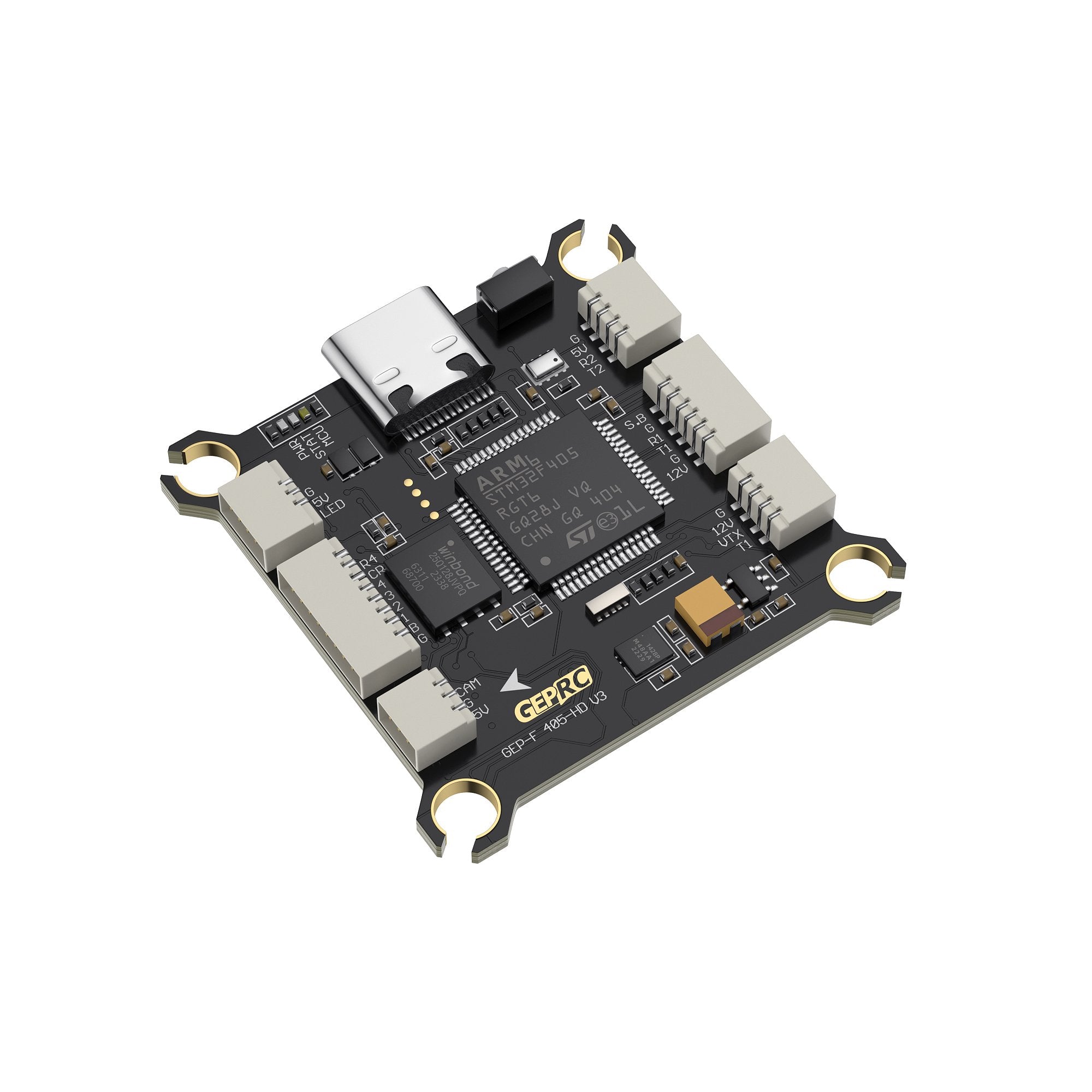

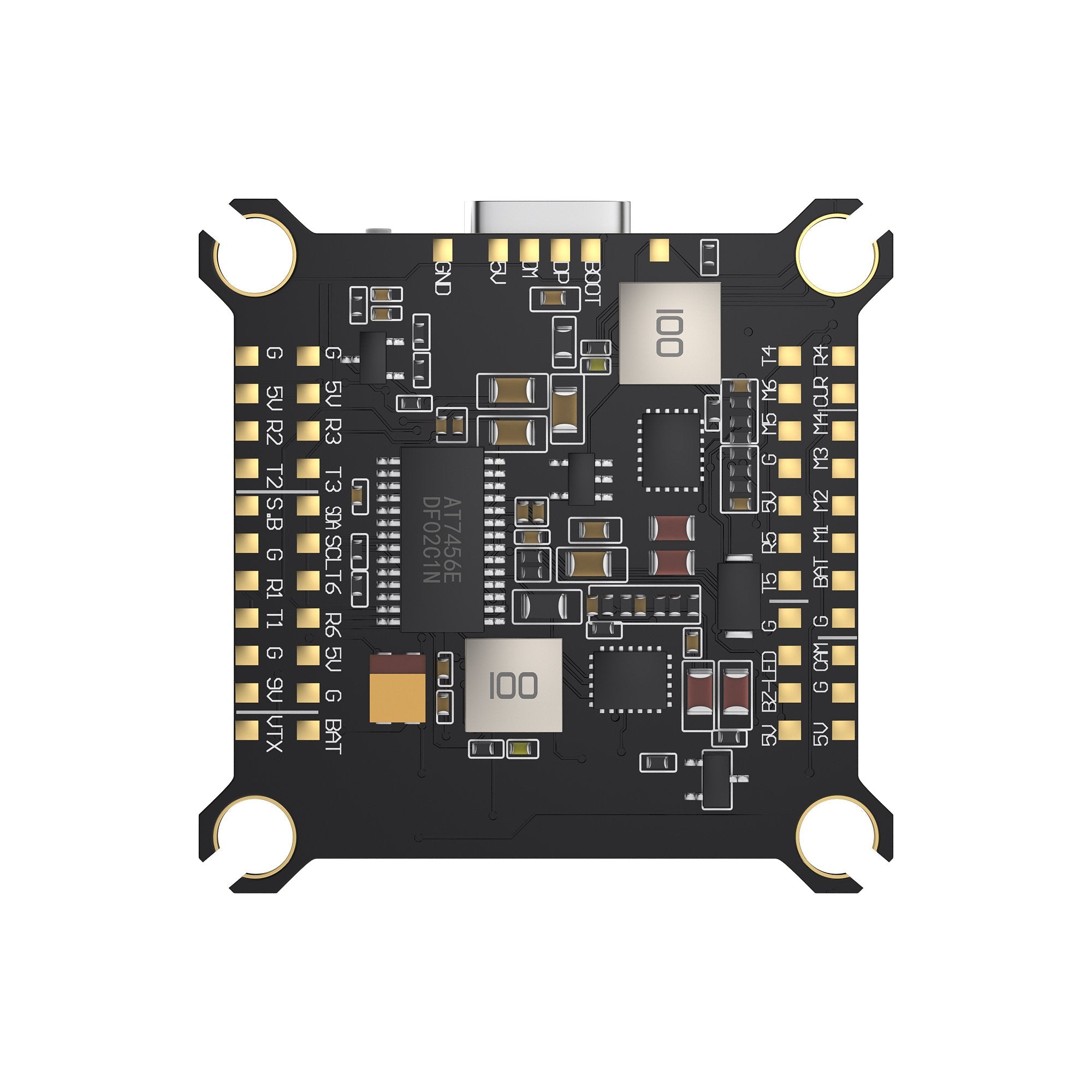

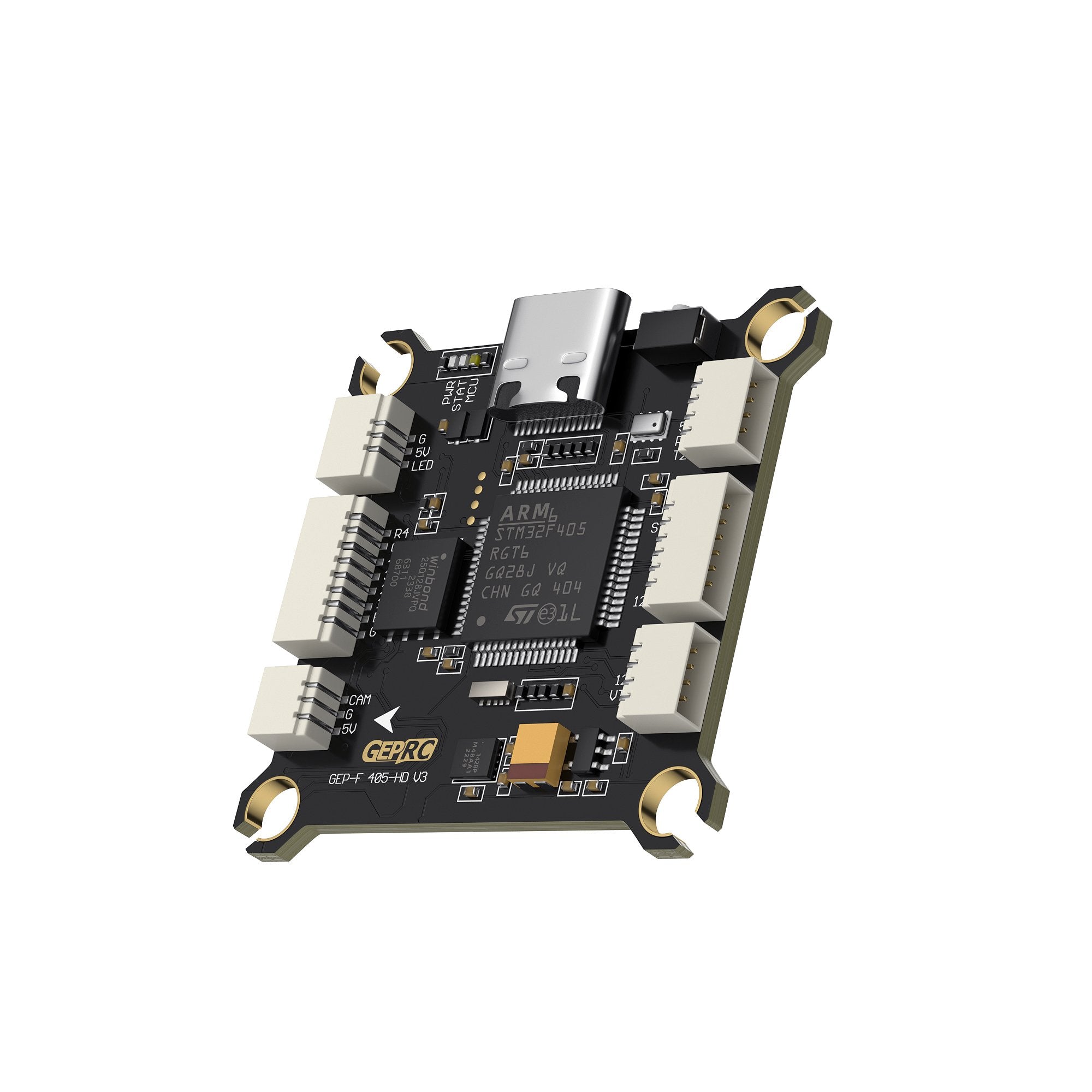

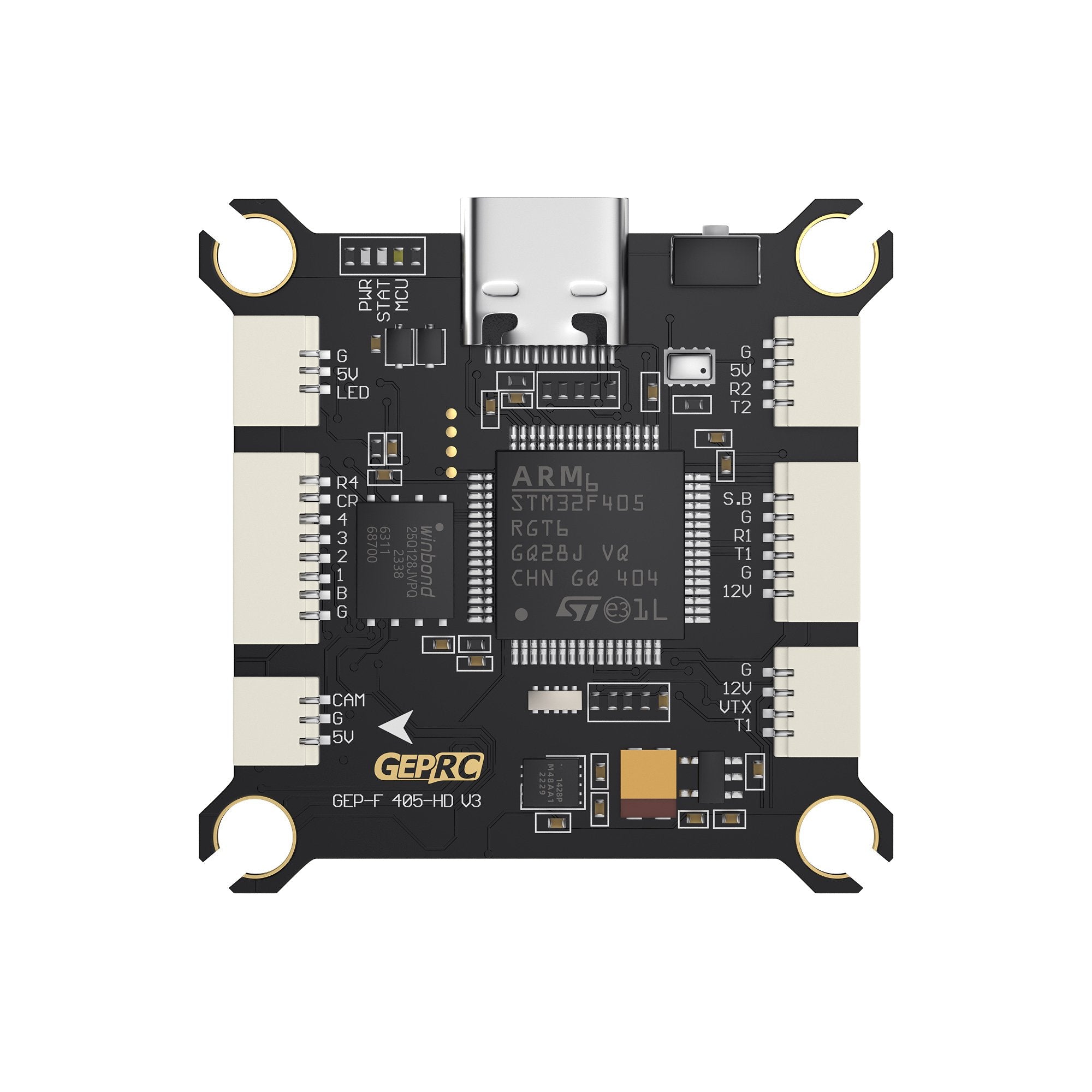

GEP-F405-HD V3 Flight Controller

Features

1. Use mainstream STM32F405 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M Blackbox storage
4. 5V@3A+12V@2.5A dual independent BEC
5. Integrated LC filter
6. Upgrade type-C USB interface
7. Directly plugged into the DJI Air Unit
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9. Integrated barometer

Specifications

• MCU: STM32F405
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugging into DJI Air Unit
• Black Box: 16M onboard
• Barometer: Support
• Motor outputs: M1-M6
• USB Interface: Type-C
• OSD: Betaflight OSD w/ AT7456E chip
• BEC: 5V@3A,12V@2.5A dual BEC
• Firmware Target: GEPRCF405
• Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage: 3-6S LiPo
• UART: 6 UARTs
• Power Filter: Integrated LC filter
• Weight: 7.3g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4-pin ribbon cable

1 x Camera connection cable
